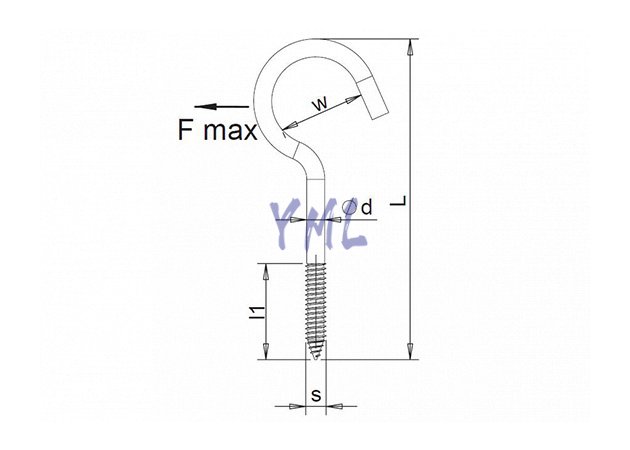

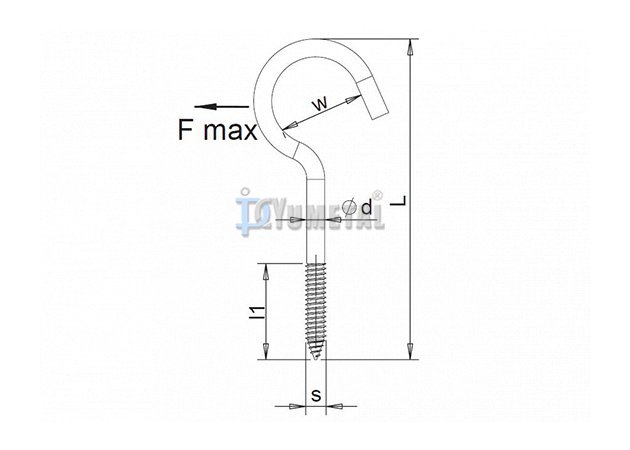

| Art No. | d | L | W | l1 |
| F max | Weight |
| mm | mm | mm | mm | mm | kg | kg/100pcs | |
| SCK11-2.0x16 | 2.0 | 16 | 5 | 7 | 4 | 2.5 | 0.05 |
| SCK11-2.0x20 | 2.0 | 20 | 7 | 8 | 4 | 2.5 | 0.08 |
| SCK11-2.5x25 | 2.5 | 25 | 7 | 9 | 5 | 5 | 0.15 |
| SCK11-3.0x30 | 3.0 | 30 | 8 | 13 | 6 | 7.5 | 0.24 |
| SCK11-3.0x40 | 3.0 | 40 | 13 | 15 | 6 | 7.5 | 0.34 |
| SCK11-3.5x50 | 3.5 | 50 | 19 | 19 | 6 | 12.5 | 0.60 |
| SCK11-4.0x60 | 4.0 | 60 | 16 | 20 | 8 | 15 | 0.85 |
| SCK11-4.0x80 | 4.0 | 80 | 16 | 30 | 8 | 15 | 1.05 |
| SCK11-4.0x100 | 4.0 | 100 | 16 | 40 | 8 | 35 | 1.25 |
| SCK11-4.5x50 | 4.5 | 50 | 16 | 16 | 8 | 20 | 0.85 |
| SCK11-4.5x60 | 4.5 | 60 | 22 | 20 | 8 | 20 | 1.10 |
| SCK11-4.5x70 | 4.5 | 70 | 28 | 24 | 8 | 20 | 1.45 |
| SCK11-5.0х65 | 5.0 | 65 | 22 | 21 | 8 | 35 | 1.40 |
| SCK11-5.0х80 | 5.0 | 80 | 30 | 24 | 8 | 35 | 1.85 |
| SCK11-5.0х120 | 5.0 | 120 | 16 | 45 | 8 | 35 | 2.25 |
| SCK11-6.0x100 | 6.0 | 100 | 32 | 40 | 10 | 60 | 3.20 |
| SCK11-6.0х140 | 6.0 | 140 | 16 | 45 | 10 | 60 | 3.20 |
| SCK11-6.0х160 | 6.0 | 160 | 16 | 45 | 10 | 60 | 3.65 |
