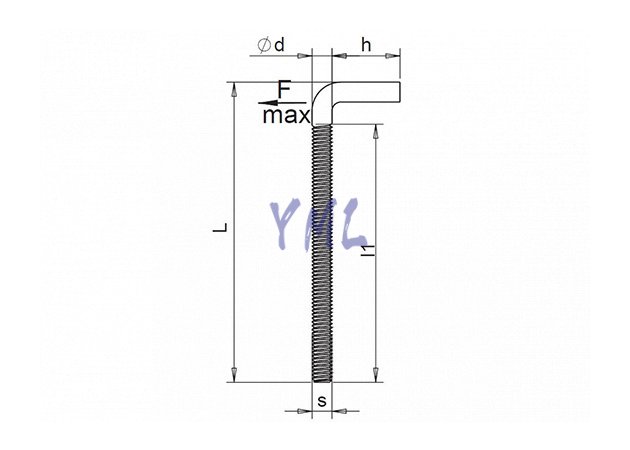

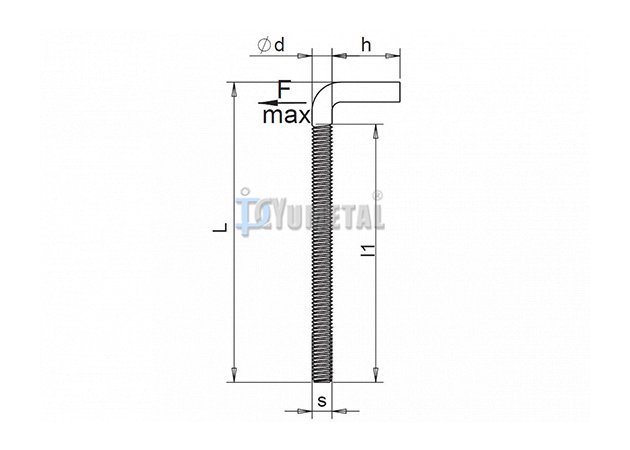

| Art No. | Thread | L | l1 | d | h | F max | Weight |
| mm | mm | mm | mm | kg | kg/100pcs | ||
| SLB16-M4x40 | M4 | 40 | 32 | 3.2 | 13 | 12.5 | 0.37 |
| SLB16-M4x50 | M4 | 50 | 42 | 3.2 | 13 | 12.5 | 0.46 |
| SLB16-M4x60 | M4 | 60 | 52 | 3.2 | 13 | 12.5 | 0.58 |
| SLB16-M5x40 | M5 | 40 | 30 | 4.2 | 14 | 20 | 0.60 |
| SLB16-M5x50 | M5 | 50 | 40 | 4.2 | 14 | 20 | 0.74 |
| SLB16-M5x60 | M5 | 60 | 50 | 4.2 | 14 | 20 | 0.86 |
| SLB16-M6x50 | M6 | 50 | 35 | 5.0 | 15 | 40 | 1.05 |
| SLB16-M6x60 | M6 | 60 | 45 | 5.0 | 15 | 40 | 1.20 |
| SLB16-M6x80 | M6 | 80 | 65 | 5.0 | 15 | 40 | 1.55 |
| SLB16-M8x60 | M8 | 60 | 40 | 6.8 | 18 | 80 | 2.30 |
| SLB16-M8x80 | M8 | 80 | 60 | 6.8 | 18 | 80 | 3.00 |
| SLB16-M8x100 | M8 | 100 | 80 | 6.8 | 18 | 80 | 3.60 |
| SLB16-M10x100 | M10 | 100 | 80 | 8.8 | 22 | 150 | 6.00 |
| SLB16-M10x150 | M10 | 150 | 130 | 8.8 | 22 | 150 | 8.40 |
