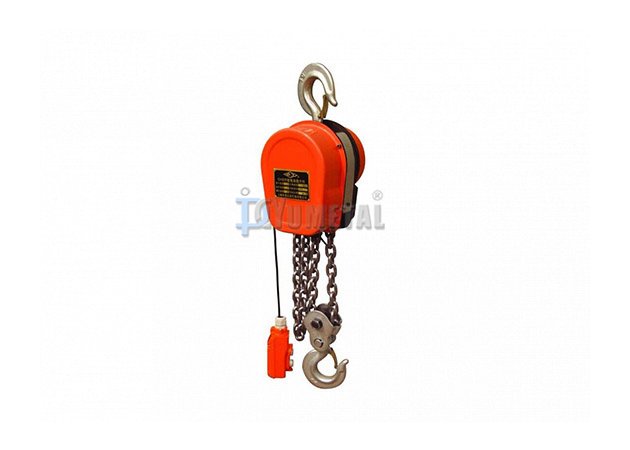

| Model | DHP5 | DHP7.5 | DHP10 | DHP20 | |
| Rated Load | Ton | 5.00 | 7.50 | 10.00 | 20.00 |
| Test Load | Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn |
| Power | kw | 0.50 | 0.50 | 0.50 | 0.50 |
| Switch Type | Defence Rain Switch | ||||
| Voltage | 380V 50HZ | ||||
| Lifting Speed m/min | m/min | 0.09 | 0.12 | 0.09 | 0.09 |
| Min Distance of Two Hook | mm | 200.00 | 500.00 | 500.00 | 500.00 |
| No. of lifting chain | 2.00 | 4.00 | 8.00 | 12.00 | |
| Lifting Chain Dia. | mm | 10.00 | 10.00 | 10.00 | 10.00 |
| N.W. | kg/pc | 58.00 | 70.00 | 95.00 | 95.00 |
| G.W. | kg/pc | 69.00 | 80.00 | 108.00 | 225.00 |
| Weight Add of One Meter | kg | 4.40 | 6.60 | 8.80 | 17.60 |
