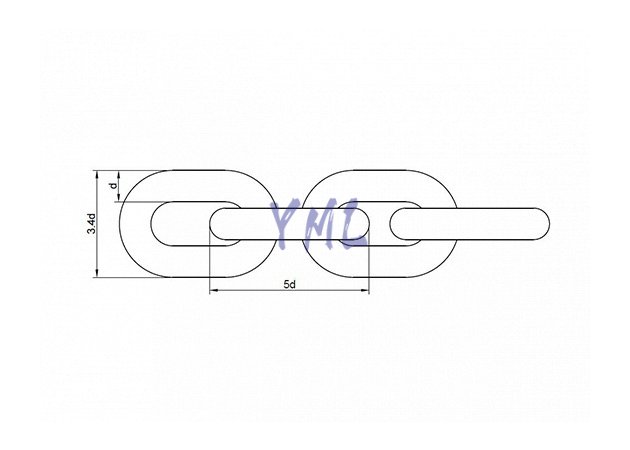

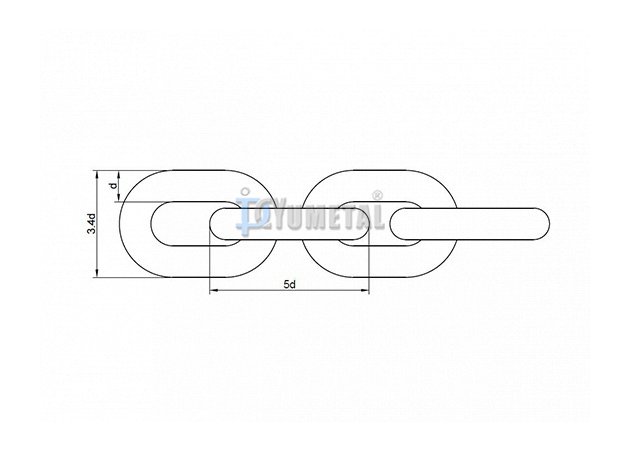

| Art No. | Chain Diameter | Chain Diameter | Grade 1 | Grade 2 | Grade 3 | Approx Mass (27.5M) | |||
| Proof Load | Breaking Load | Proof Load | Breaking Load | Proof Load | Breaking Load | ||||
| mm | inch | KN | KN | KN | KN | KN | KN | kg/pc | |
| AC02-12.5 | 12.50 | 1/2" | 28.75 | 57.81 | 41.20 | 82.60 | 56.40 | 112.80 | 93.50 |
| AC02-14 | 14.00 | 9/16" | 34.78 | 69.93 | 51.00 | 101.90 | 70.76 | 141.51 | 117.15 |
| AC02-16 | 16.00 | 5/8" | 47.10 | 94.72 | 66.20 | 132.30 | 92.42 | 184.83 | 152.90 |
| AC02-17.5 | 17.50 | 11/16" | 56.35 | 113.31 | 78.89 | 157.78 | 110.55 | 221.10 | 182.80 |
| AC02-19 | 19.00 | 3/4" | 66.42 | 133.57 | 93.60 | 187.20 | 130.32 | 260.64 | 249.50 |
| AC02-20.5 | 20.50 | 13/16" | 77.33 | 155.49 | 108.64 | 217.27 | 151.70 | 303.42 | 275.40 |
| AC02-22 | 22.00 | 7/8" | 89.06 | 179.08 | 125.40 | 250.90 | 174.40 | 349.40 | 328.60 |
| AC02-24 | 24.00 | 15/16" | 105.98 | 213.25 | 149.90 | 298.90 | 207.90 | 414.55 | 385.00 |
| AC02-26 | 26.00 | 1" | 124.38 | 250.12 | 175.40 | 350.80 | 244.00 | 488.00 | 449.10 |
| AC02-28 | 28.00 | 1-1/8" | 144.26 | 290.08 | 203.80 | 406.70 | 283.00 | 566.00 | 516.70 |
| AC02-30 | 30.00 | 1-3/16" | 165.60 | 333.00 | 234.20 | 467.50 | 324.90 | 649.80 | 589.40 |
| AC02-32 | 32.00 | 1-1/4" | 188.42 | 378.88 | 265.60 | 531.20 | 369.60 | 739.30 | 664.60 |
| AC02-34 | 34.00 | 1-5/16" | 212.70 | 427.72 | 299.90 | 599.80 | 417.30 | 834.60 | 752.90 |
| AC02-36 | 36.00 | 1-7/16" | 238.46 | 479.52 | 336.10 | 672.30 | 467.80 | 935.70 | 861.20 |
| AC02-38 | 38.00 | 1-1/2" | 265.70 | 534.28 | 374.40 | 748.70 | 521.30 | 1042.50 | 957.50 |
| AC02-40 | 40.00 | 1-9/16" | 249.40 | 592.00 | 414.50 | 829.10 | 577.60 | 1155.20 | 1056.20 |
| AC02-42 | 42.00 | 1-5/8" | 324.58 | 652.68 | 457.70 | 915.30 | 636.80 | 1273.60 | 1166.50 |
| AC02-44 | 44.00 | 1-3/4" | 356.22 | 716.32 | 502.70 | 999.60 | 698.39 | 1398.00 | 1270.40 |
| AC02-46 | 46.00 | 1-13/16" | 389.34 | 782.92 | 548.80 | 1097.60 | 763.90 | 1527.07 | 1396.60 |
| AC02-48 | 48.00 | 1-7/8" | 423.94 | 852.48 | 597.80 | 1195.60 | 831.70 | 1663.50 | 1520.60 |
| AC02-50 | 50.00 | 2" | 460.00 | 926.09 | 648.80 | 1239.60 | 902.50 | 1805.00 | 1580.00 |
| AC02-52 | 52.00 | 2-1/16" | 497.54 | 1000.48 | 697.63 | 1395.26 | 976.14 | 1952.28 | 1629.39 |
| AC02-54 | 54.00 | 2-1/8" | 536.54 | 1078.92 | 752.23 | 1504.66 | 1052.68 | 2105.36 | 1757.14 |
| AC02-56 | 56.00 | 2-3/16" | 577.02 | 1160.32 | 809.09 | 1618.18 | 1132.10 | 2264.20 | 1889.71 |
| AC02-58 | 58.00 | 2-5/16" | 618.98 | 1244.68 | 867.91 | 1735.82 | 1214.40 | 2428.80 | 2027.10 |
| AC02-60 | 60.00 | 2-3/8" | 662.40 | 1332.00 | 928.80 | 1857.60 | 1299.60 | 2599.20 | 2169.31 |
| AC02-62 | 62.00 | 2-7/16" | 707.30 | 1422.28 | 991.75 | 1983.50 | 1387.68 | 2775.36 | 2316.34 |
| AC02-64 | 64.00 | 2-1/2" | 753.66 | 1515.52 | 1056.77 | 2113.54 | 1478.66 | 2957.32 | 2468.19 |
| AC02-66 | 66.00 | 2-5/8" | 801.50 | 1611.72 | 1123.85 | 2247.70 | 1572.52 | 3145.04 | 2624.86 |
| AC02-68 | 68.00 | 2-11/16" | 850.82 | 1710.88 | 1192.99 | 2385.98 | 1669.26 | 3338.52 | 2786.35 |
| AC02-70 | 70.00 | 2-3/4" | 901.60 | 1813.00 | 1264.20 | 2528.40 | 1768.90 | 3537.80 | 2952.67 |
