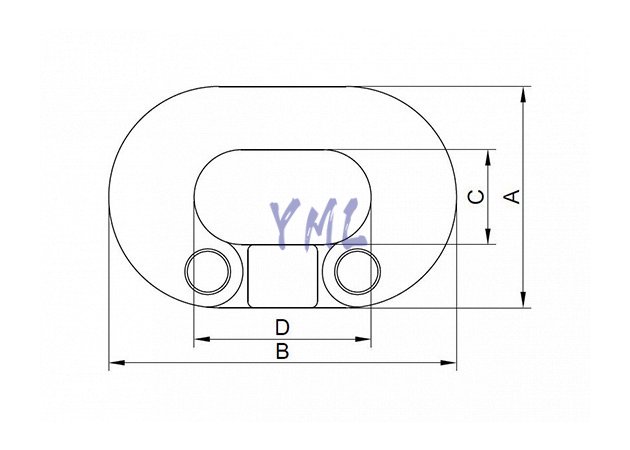

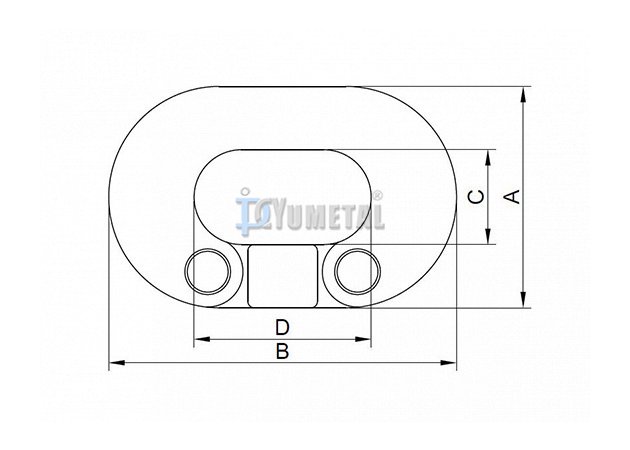

| Art No. | Size inch | Dimensions(mm) | WLL LBS | |||
| A | B | C | D | |||
| CH51-3/16 | 3/16 | 20.5 | 28.5 | 8 | 16 | 800 |
| CH51-1/4 | 1/4 | 25 | 38 | 11 | 22 | 1300 |
| CH51-5/16 | 5/16 | 30 | 44.5 | 12.7 | 25 | 1900 |
| CH51-3/8 | 3/8 | 35 | 54 | 14 | 28 | 2700 |
| CH51-1/2 | 1/2 | 44 | 68 | 16 | 40 | 4700 |
| CH51-5/8 | 5/8 | 54 | 86 | 21 | 50 | 7200 |
| CH51-3/4 | 3/4 | 64 | 99 | 24 | 57 | 10200 |
