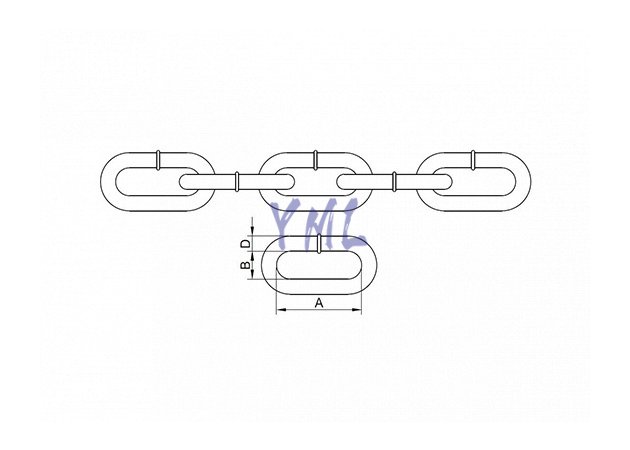

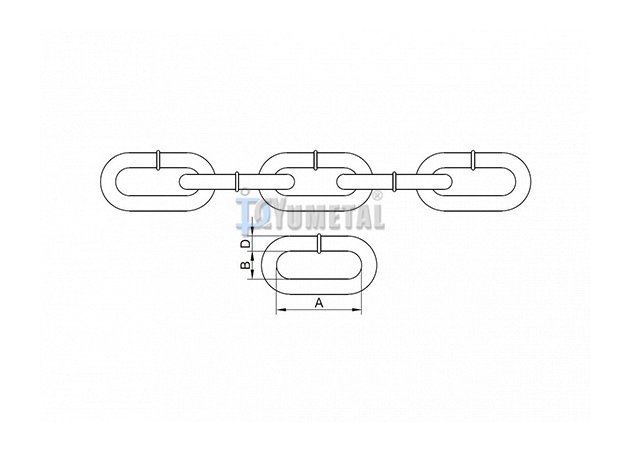

| Art No. | Size | Width | Working Load Limited | Test Load | Breaking Load Min. | Approx Weight | |
| Dia x IL | Inside min. | Outside max. | ton | kn | kn | kg/m | |
| CH36-6X18 | 6 x 18 | 7.5 | 21.0 | 1.1 | 27.0 | 45.2 | 0.79 |
| CH36-7X21 | 7 x 21 | 9.0 | 24.5 | 1.5 | 37.0 | 61.6 | 1.07 |
| CH36-8X24 | 8 x 24 | 10.0 | 28.0 | 2.0 | 48.0 | 80.4 | 1.38 |
| CH36-10X30 | 10 x 30 | 12.5 | 35.0 | 3.2 | 76.0 | 125.0 | 2.20 |
| CH36-11X33 | 11 x 33 | 12.6 | 36.5 | 3.8 | 92.0 | 154.0 | 2.33 |
| CH36-12X36 | 12 x 36 | 15.0 | 42.0 | 4.6 | 109.0 | 181.0 | 3.10 |
| CH36-12.5X38 | 12.5 x 38 | 15.5 | 42.2 | 4.9 | 117.0 | 196.0 | 3.30 |
| CH36-13X39 | 13 x 39 | 16.3 | 46.0 | 5.0 | 128.0 | 214.0 | 3.80 |
| CH36-14X42 | 14 x 42 | 18.0 | 49.0 | 6.3 | 150.0 | 250.0 | 4.13 |
| CH36-14X50 | 14 x 50 | 17.0 | 48.0 | 6.3 | 150.0 | 250.0 | 4.00 |
| CH36-15X46 | 15 x 46 | 20.0 | 52.0 | 7.0 | 168.0 | 280.0 | 5.17 |
| CH36-16X48 | 16 x 48 | 20.0 | 56.0 | 8.0 | 192.0 | 320.0 | 5.63 |
| CH36-16X49 | 16 x 49 | 24.5 | 59.5 | 8.0 | 192.0 | 320.0 | 5.71 |
| CH36-16X64 | 16 x 64 | 23.9 | 58.9 | 8.0 | 192.0 | 320.0 | 5.11 |
| CH36-18X54 | 18 x 54 | 23.0 | 63.0 | 10.0 | 246.0 | 410.0 | 6.85 |
| CH36-18X64 | 18 x 64 | 21.0 | 60.0 | 10.0 | 246.0 | 410.0 | 6.60 |
| CH36-19X57 | 19 x 57 | 23.7 | 63.2 | 11.3 | 270.0 | 450.0 | 7.70 |
| CH36-20X60 | 20 x 60 | 25.0 | 70.0 | 12.5 | 300.0 | 500.0 | 8.60 |
| CH36-22X65 | 22 x 65 | 28.0 | 74.2 | 15.3 | 366.0 | 610.0 | 10.70 |
| CH36-22X66 | 22 x 66 | 28.0 | 77.0 | 15.3 | 366.0 | 610.0 | 10.20 |
| CH36-22X86 | 22 x 86 | 26.0 | 74.0 | 15.3 | 366.0 | 610.0 | 9.50 |
| CH36-24X72 | 24 x 72 | 32.0 | 82.0 | 18.0 | 432.0 | 720.0 | 12.78 |
| CH36-24X86 | 24 x 86 | 28.0 | 79.0 | 18.0 | 432.0 | 720.0 | 11.60 |
| CH36-26X78 | 26 x 78 | 35.0 | 91.0 | 21.3 | 510.0 | 850.0 | 14.87 |
| CH36-26X92 | 26 x 92 | 30.0 | 86.0 | 21.3 | 510.0 | 850.0 | 13.70 |
| CH36-30X90 | 30 x 90 | 38.0 | 105.0 | 28.3 | 678.0 | 1130.0 | 19.60 |
| CH36-30X108 | 30 x 108 | 34.0 | 98.0 | 28.3 | 678.0 | 1130.0 | 18.00 |
| CH36-32X96 | 32 x 96 | 40.0 | 106.0 | 32.2 | 772.0 | 1286.0 | 22.29 |
