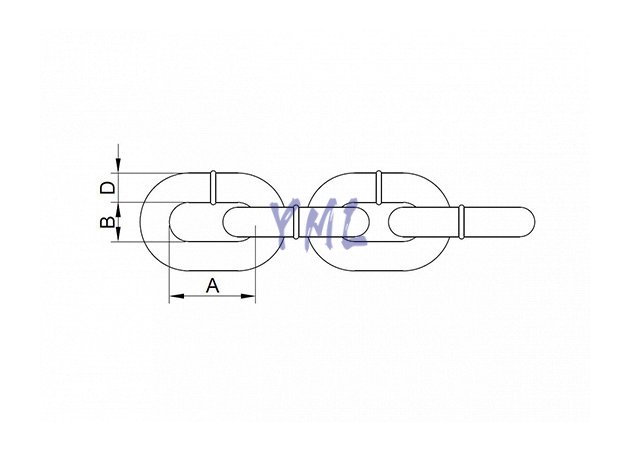

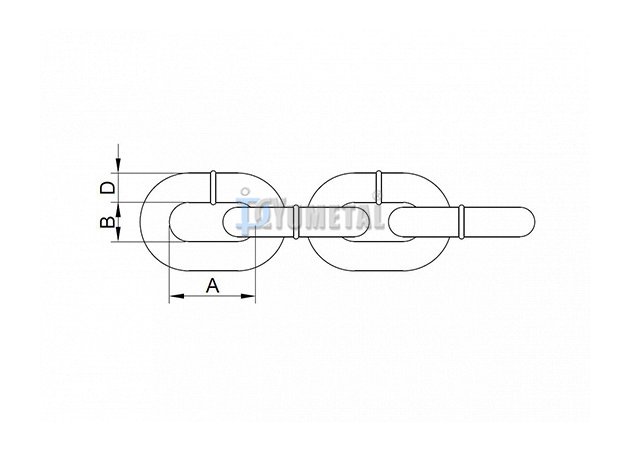

| Art No. | Material Diameter | Inside Length | Inside Width | Working Load max | Proof Load | Breaking Load Min | Weight |
| mm | mm | mm | kg | kg | kg | kg/m | |
| CH26-5.0 | 5 | 15 | 6.7 | 400 | 800 | 1600 | 0.55 |
| CH26-5.6 | 5.6 | 17 | 7 | 500 | 1000 | 2000 | 0.7 |
| CH26-6.3 | 6.3 | 19 | 7.9 | 630 | 1250 | 2500 | 0.87 |
| CH26-7.1 | 7.1 | 21 | 8.9 | 800 | 1600 | 3150 | 1.1 |
| CH26-8.0 | 8 | 24 | 10 | 1000 | 20000 | 4000 | 1.4 |
| CH26-9.0 | 9 | 27 | 11.3 | 1250 | 2500 | 5000 | 1.8 |
| CH26-10 | 10 | 30 | 12.5 | 1600 | 3150 | 6300 | 2.18 |
| CH26-11.2 | 11.2 | 34 | 14 | 2000 | 4000 | 8000 | 2.73 |
| CH26-12.5 | 12.5 | 38 | 15.7 | 2500 | 5000 | 10000 | 3.4 |
| CH26-14 | 14 | 42 | 18 | 3150 | 6300 | 12500 | 4.8 |
