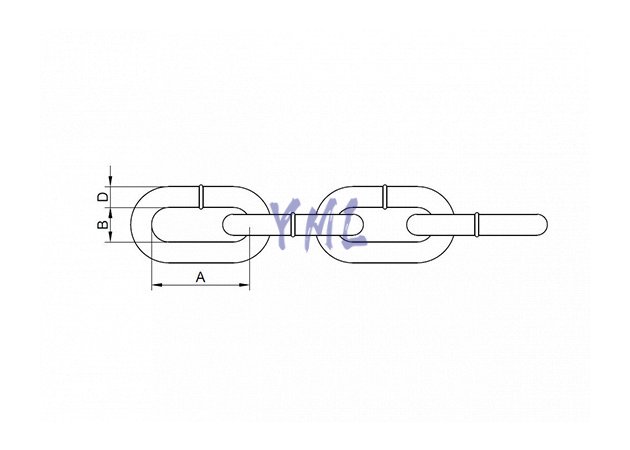

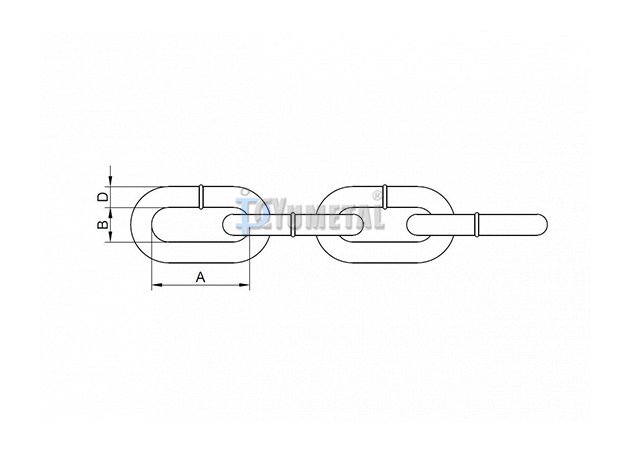

| Art No. | Chain Size | Material Diameter | Inside Length | Inside Width | Length Per PC | Weight |
| mm | mm | mm | mm | m | kg/pc | |
| CH23-03 | 3 | 3.0 | 23.0 | 5.3 | 30 | 4.50 |
| CH23-04 | 4 | 4.0 | 22.0 | 7.5 | 30 | 9.00 |
| CH23-05 | 5 | 4.8 | 23.7 | 8.3 | 30 | 12.74 |
| CH23-06 | 6 | 5.8 | 27.3 | 10.0 | 30 | 18.86 |
| CH23-07 | 7 | 7.0 | 31.0 | 12.0 | 15 | 14.14 |
| CH23-08 | 8 | 7.8 | 35.0 | 13.7 | 15 | 17.23 |
| CH23-09 | 9 | 8.8 | 39.0 | 15.2 | 15 | 22.13 |
| CH23-12 | 12 | 12.0 | 38.0 | 18.0 | 15 | 45.00 |
| CH23-15 | 15 | 15.0 | 45.0 | 23.0 | 15 | 75.45 |
| CH23-16 | 16 | 16.0 | 53.0 | 23.0 | 15 | 76.41 |
| CH23-19 | 19 | 19.0 | 58.0 | 25.0 | 10 | 78.28 |
