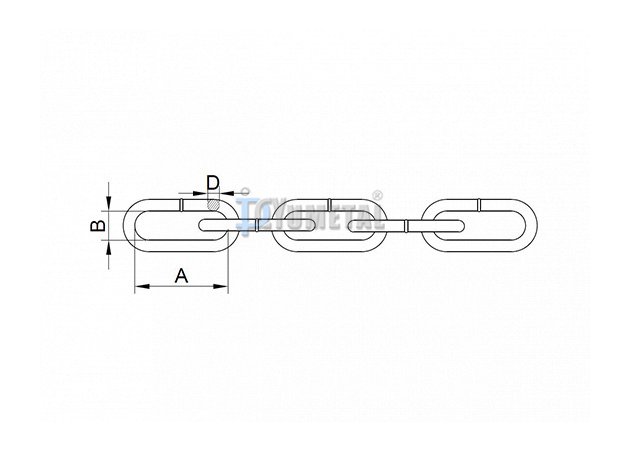

| Art No. | Diameter | Inside Length | Inside Width | Outside Width | Length per 11 links | Test Load | Breaking Load | Weight | |||
| D | A | B | |||||||||
| mm | ±mm | mm | ±mm | mm | mm | mm | ±mm | kg | kn | kg/M | |
| CH15-04 | 4 | 0.20 | 16 | 0.30 | 5 | 14 | 176 | 1.60 | 400 | 7 | 31.3 |
| 0.20 | 0.90 | ||||||||||
| CH15-05 | 5 | 0.20 | 18 | 0.40 | 7 | 18.2 | 198 | 1.80 | 680 | 11.8 | 51.4 |
| 0.20 | 1.00 | ||||||||||
| CH15-06 | 6 | 0.20 | 21 | 0.50 | 8 | 21.5 | 231 | 2.00 | 850 | 16.5 | 74 |
| 0.20 | 1.10 | ||||||||||
| CH15-08 | 8 | 0.20 | 28 | 0.50 | 11 | 29 | 308 | 2.20 | 1680 | 32 | 131.5 |
| 0.30 | 1.20 | ||||||||||
| CH15-10 | 10 | 0.30 | 35 | 0.60 | 14 | 36 | 385 | 2.70 | 2630 | 50 | 200 |
| 0.30 | 1.50 | ||||||||||
| CH15-12 | 12 | 0.30 | 42 | 0.60 | 16 | 41 | 462 | 3.20 | 3680 | 70 | 298 |
| 0.30 | 1.80 | ||||||||||
| CH15-13 | 13 | 0.40 | 45 | 0.70 | 18 | 47 | 495 | 3.50 | 4200 | 80 | 350 |
| 0.40 | 2.00 | ||||||||||
| CH15-14 | 14 | 0.45 | 49 | 0.75 | 20 | 48 | 539 | 3.80 | 4830 | 92 | 406 |
| 0.45 | 2.00 | ||||||||||
| CH15-16 | 16 | 0.50 | 56 | 0.90 | 22 | 58 | 616 | 4.30 | 6700 | 125 | 520 |
| 0.50 | 2.50 | ||||||||||
| CH15-18 | 18 | 0.80 | 63 | 1.00 | 24 | 65 | 693 | 4.70 | 8400 | 160 | 650 |
| 0.50 | 2.80 | ||||||||||
| CH15-20 | 20 | 1.00 | 70 | 1.10 | 27 | 72 | 770 | 5.40 | 10000 | 200 | 820 |
| 0.60 | 3.20 | ||||||||||
| CH15-23 | 23 | 1.20 | 80 | 1.30 | 31 | 83 | 880 | 6.20 | 13000 | 250 | 1100 |
| 0.70 | 3.50 | ||||||||||
| CH15-26 | 26 | 1.30 | 91 | 1.50 | 35 | 94 | 1001 | 7.00 | 16000 | 320 | 1400 |
| 0.80 | 4.00 | ||||||||||
