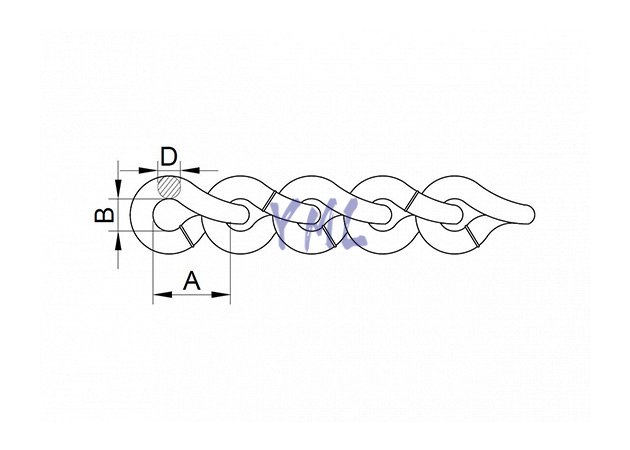

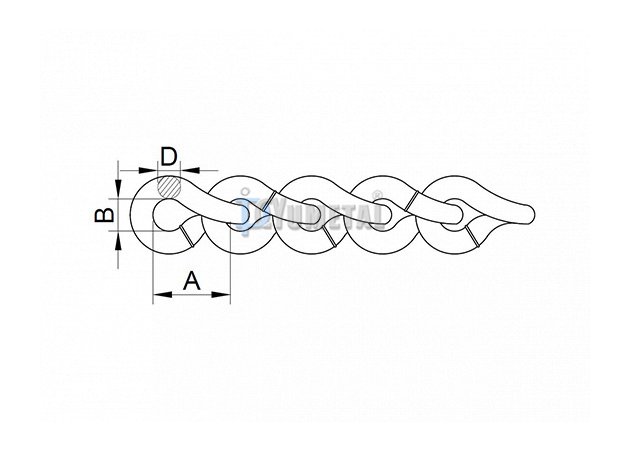

| Art No. | Trade Size | Diameter | Inside Length | Inside Width | Min Breaking Load | |||||
| D | A | B | ||||||||
| mm | No. | mm | inch | mm | inch | mm | inch | kn | lb | |
| CH12-3.0 | 3.0 | 4 | 3.0 | 0.120 | 27.6 | 1.09 | 4.56 | 0.18 | 3.47 | 780 |
| CH12-3.4 | 3.4 | 3 | 3.4 | 0.135 | 28.9 | 1.14 | 5.32 | 0.21 | 4.31 | 970 |
| CH12-3.8 | 3.8 | 2 | 3.8 | 0.148 | 29.1 | 1.15 | 5.58 | 0.22 | 5.25 | 1180 |
| CH12-4.1 | 4.1 | 1 | 4.1 | 0.162 | 30.9 | 1.22 | 6.34 | 0.25 | 6.24 | 1405 |
| CH12-4.5 | 4.5 | 1/0 | 4.5 | 0.177 | 30.9 | 1.22 | 6.85 | 0.27 | 7.43 | 1670 |
| CH12-4.9 | 4.9 | 2/0 | 4.9 | 0.192 | 31.4 | 1.24 | 7.36 | 0.29 | 8.78 | 1975 |
| CH12-5.3 | 5.3 | 3/0 | 5.3 | 0.207 | 31.9 | 1.26 | 8.12 | 0.32 | 10.23 | 2300 |
| CH12-5.5 | 5.5 | 4/0 | 5.5 | 0.218 | 34.0 | 1.34 | 8.32 | 0.33 | 11.32 | 2545 |
| CH12-6.4 | 6.4 | 5/0 | 6.4 | 0.250 | 37.3 | 1.47 | 9.65 | 0.38 | 14.86 | 3345 |
