| Art No. | Diameter of Rope | Nominal Tensile Strength | Approx. Weight | ||||
| 1570 N/ mm 2 | 1770 N/ mm 2 | ||||||
| Minimum Breaking Strength | kg/m | ||||||

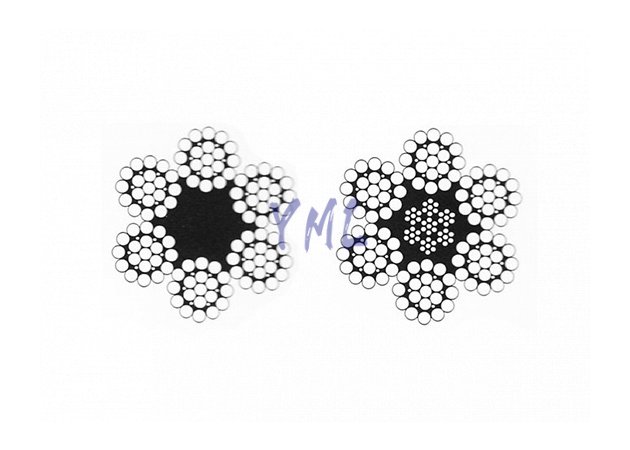

| mm | FC | IWRC | FC | IWRC | FC | IWRC | |
| WP05-10 | 10 | 53.0 | 57.3 | 59.8 | 64.6 | 0.380 | 0.418 |
| WP05-11 | 11 | 64.2 | 69.3 | 72.3 | 78.1 | 0.460 | 0.506 |
| WP05-12 | 12 | 76.3 | 82.5 | 86.1 | 93.0 | 0.547 | 0.602 |
| WP05-13 | 13 | 89.6 | 96.8 | 101.0 | 109.0 | 0.643 | 0.707 |
| WP05-14 | 14 | 104.0 | 112.0 | 117.0 | 127.0 | 0.745 | 0.820 |
| WP05-15 | 15 | 119.0 | 129.0 | 135.0 | 145.0 | 0.855 | 0.941 |
| WP05-16 | 16 | 136.0 | 147.0 | 153.0 | 165.0 | 0.973 | 1.070 |
| WP05-17 | 17 | 153.0 | 166.0 | 173.0 | 187.0 | 1.100 | 1.210 |
| WP05-18 | 18 | 172.0 | 186.0 | 194.0 | 209.0 | 1.230 | 1.350 |
| WP05-19 | 19 | 191.0 | 207.0 | 216.0 | 233.0 | 1.370 | 1.510 |
| WP05-20 | 20 | 212.0 | 229.0 | 239.0 | 258.0 | 1.520 | 1.670 |
| WP05-22 | 22 | 257.0 | 277.0 | 289.0 | 312.0 | 1.840 | 2.020 |
| WP05-24 | 24 | 305.0 | 330.0 | 344.0 | 372.0 | 2.190 | 2.410 |
| WP05-26 | 26 | 358.0 | 387.0 | 404.0 | 436.0 | 2.570 | 2.830 |
| WP05-28 | 28 | 416.0 | 449.0 | 469.0 | 506.0 | 2.980 | 3.280 |
| WP05-32 | 32 | 543.0 | 586.0 | 612.0 | 661.0 | 3.890 | 4.280 |
| WP05-36 | 36 | 687.0 | 742.0 | 775.0 | 837.0 | 4.930 | 5.420 |
