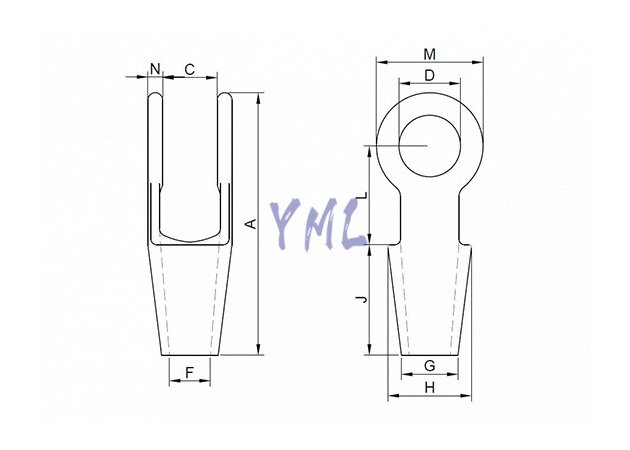

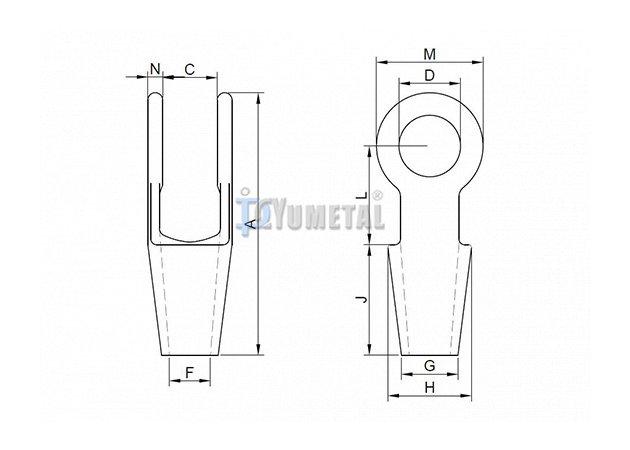

| Art No. | Size | A | C | D | F | G | N | Weight |
| inch | inch | inch | inch | inch | inch | inch | lb/pc | |
| FE13-1/4 | 1/4" | 4.56 | 0.91 | 0.69 | 0.38 | 0.69 | 0.36 | 1.10 |
| FE13-5/16-3/8 | 5/16"-3/8" | 4.84 | 0.81 | 0.81 | 0.50 | 0.81 | 0.44 | 1.30 |
| FE13-7/16-1/2 | 7/16"-1/2" | 5.56 | 1.00 | 1.00 | 0.56 | 0.94 | 0.50 | 2.25 |
| FE13-9/16-5/8 | 9/16"-5/8" | 6.75 | 1.25 | 1.19 | 0.69 | 1.13 | 0.56 | 3.60 |
| FE13-3/4 | 3/4" | 7.94 | 1.50 | 1.38 | 0.81 | 1.25 | 0.62 | 5.83 |
| FE13-7/8 | 7/8" | 9.25 | 1.75 | 1.63 | 0.94 | 1.50 | 0.80 | 9.65 |
| FE13-1 | 1" | 10.56 | 2.00 | 2.00 | 1.13 | 1.75 | 0.88 | 15.50 |
| FE13-1 1/8 | 1 1/8" | 11.81 | 2.25 | 2.25 | 1.25 | 2.00 | 1.00 | 21.50 |
| FE13-1 1/4-1 3/8 | 1 1/4"-1 3/8" | 13.19 | 2.50 | 2.50 | 1.50 | 2.25 | 1.13 | 31.00 |
| FE13-1 1/2 | 1 1/2" | 15.12 | 3.00 | 2.75 | 1.63 | 2.75 | 1.19 | 47.25 |
| FE13-1 5/8 | 1 5/8" | 16.25 | 3.00 | 3.00 | 1.75 | 3.00 | 1.31 | 55.00 |
| FE13-1 3/4-1 7/8 | 1 3/4"-1 7/8" | 18.25 | 3.50 | 3.50 | 2.00 | 3.13 | 1.56 | 82.00 |
| FE13-2-2 1/8 | 2-2 1/8" | 21.50 | 4.00 | 3.75 | 2.25 | 3.75 | 1.81 | 129.00 |
| FE13-2 1/4-2 3/8 | 2 1/4"-2 3/8" | 23.50 | 4.50 | 4.25 | 2.50 | 4.00 | 2.13 | 167.00 |
| FE13-2 1/2-2 5/8 | 2 1/2"-2 5/8" | 25.50 | 5.00 | 4.75 | 2.88 | 4.50 | 2.38 | 252.00 |
| FE13-2 3/4-2 7/8 | 2 3/4"-2 7/8" | 27.25 | 5.25 | 5.00 | 3.12 | 4.88 | 2.88 | 315.00 |
| FE13-3-3 1/8 | 3-3 1/8" | 29.00 | 5.75 | 5.25 | 3.38 | 5.25 | 3.00 | 380.00 |
| FE13-3 1/4-3 3/8 | 3 1/4"-3 3/8" | 30.88 | 6.25 | 5.50 | 3.62 | 5.75 | 3.12 | 434.00 |
| FE13-3 1/2-3 5/8 | 3 1/2"-3 5/8" | 33.25 | 6.75 | 6.00 | 3.88 | 6.50 | 3.25 | 563.00 |
| FE13-3 3/4-4 | 3 3/4"-4" | 36.25 | 7.50 | 7.00 | 4.25 | 7.25 | 3.50 | 783.00 |
