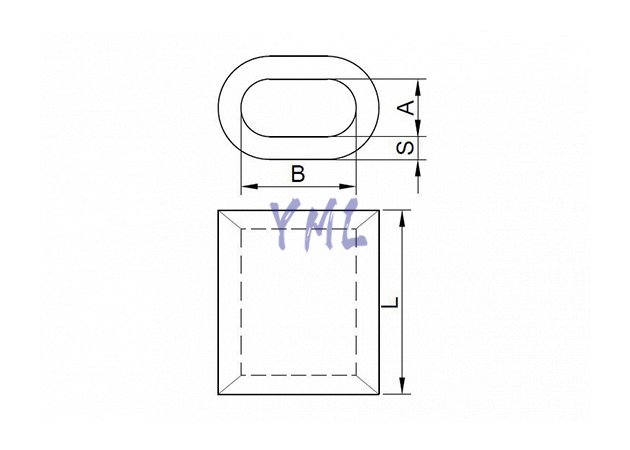

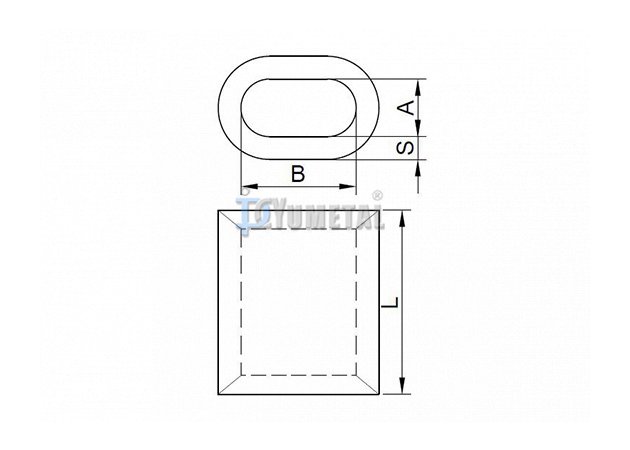

| Art No. | Size | A | B | S | L | Weight |
| mm | mm | mm | mm | mm | kg/1000pcs | |
| FE10-01 | 1 | 1.20 | 2.40 | 0.65 | 5 | 0.29 |
| FE10-1.5 | 1.5 | 1.70 | 3.40 | 0.75 | 6 | 0.52 |
| FE10-02 | 2 | 2.20 | 4.40 | 0.85 | 7 | 0.84 |
| FE10-2.5 | 2.5 | 2.70 | 5.40 | 1.05 | 9 | 1.30 |
| FE10-03 | 3 | 3.30 | 6.60 | 1.25 | 11 | 2.69 |
| FE10-3.5 | 3.5 | 3.80 | 7.60 | 1.50 | 13 | 3.50 |
| FE10-04 | 4 | 4.40 | 8.80 | 1.70 | 14 | 4.83 |
| FE10-4.5 | 4.5 | 4.90 | 9.80 | 1.90 | 16 | 7.08 |
| FE10-05 | 5 | 5.50 | 11.00 | 2.10 | 18 | 10.73 |
| FE10-06 | 6 | 6.60 | 13.20 | 2.50 | 21 | 17.39 |
| FE10-6.5 | 6.5 | 7.20 | 14.40 | 2.70 | 23 | 21.27 |
| FE10-07 | 7 | 7.80 | 15.60 | 2.90 | 25 | 29.13 |
| FE10-08 | 8 | 8.80 | 17.60 | 3.30 | 28 | 38.40 |
| FE10-09 | 9 | 9.90 | 19.80 | 3.70 | 32 | 56.12 |
| FE10-10 | 10 | 10.90 | 21.80 | 4.10 | 35 | 71.38 |
| FE10-11 | 11 | 12.10 | 24.20 | 4.50 | 39 | 104.74 |
| FE10-12 | 12 | 13.20 | 26.40 | 4.90 | 42 | 130.90 |
| FE10-13 | 13 | 14.20 | 28.40 | 5.40 | 46 | 177.36 |
| FE10-14 | 14 | 15.30 | 30.60 | 5.80 | 49 | 217.78 |
| FE10-16 | 16 | 17.50 | 35.00 | 6.70 | 56 | 328.89 |
| FE10-18 | 18 | 19.60 | 39.20 | 7.60 | 63 | 462.22 |
| FE10-20 | 20 | 21.70 | 43.40 | 8.40 | 70 | 642.96 |
| FE10-22 | 22 | 24.30 | 48.60 | 9.20 | 77 | 865.19 |
| FE10-24 | 24 | 26.40 | 52.80 | 10.00 | 84 | 1114.07 |
| FE10-26 | 26 | 28.50 | 57.00 | 10.90 | 91 | 1425.19 |
| FE10-28 | 28 | 31.00 | 62.00 | 11.70 | 98 | 1786.67 |
| FE10-30 | 30 | 33.10 | 66.20 | 12.50 | 105 | 2189.63 |
| FE10-32 | 32 | 35.20 | 70.40 | 13.40 | 112 | 2657.78 |
| FE10-34 | 34 | 37.80 | 75.60 | 14.20 | 119 | 3191.11 |
| FE10-36 | 36 | 39.80 | 79.60 | 15.00 | 126 | 3777.78 |
| FE10-38 | 38 | 41.90 | 83.80 | 15.80 | 133 | 4453.33 |
| FE10-40 | 40 | 44.00 | 88.00 | 16.60 | 140 | 5137.78 |
| FE10-42 | 42 | 46.20 | 92.40 | 17.50 | 147 | 5997.04 |
| FE10-44 | 44 | 48.40 | 96.80 | 18.30 | 154 | 6856.30 |
| FE10-46 | 46 | 50.60 | 101.20 | 19.20 | 161 | 7887.41 |
| FE10-48 | 48 | 52.80 | 105.60 | 20.00 | 168 | 8918.52 |
| FE10-50 | 50 | 55.00 | 110.00 | 20.80 | 175 | 10109.63 |
| FE10-52 | 52 | 57.20 | 114.40 | 21.60 | 182 | 11297.78 |
| FE10-54 | 54 | 59.40 | 118.80 | 22.50 | 189 | 12720.00 |
| FE10-56 | 56 | 61.60 | 123.20 | 23.30 | 196 | 14139.26 |
| FE10-58 | 58 | 63.80 | 127.60 | 24.20 | 203 | 15780.74 |
| FE10-60 | 60 | 66.00 | 132.00 | 25.00 | 210 | 17422.22 |
