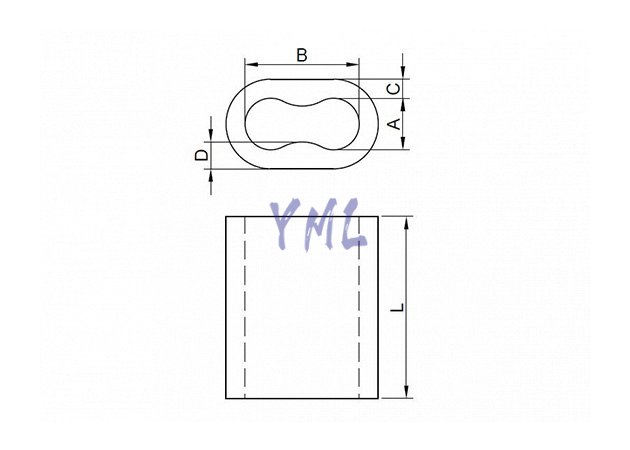

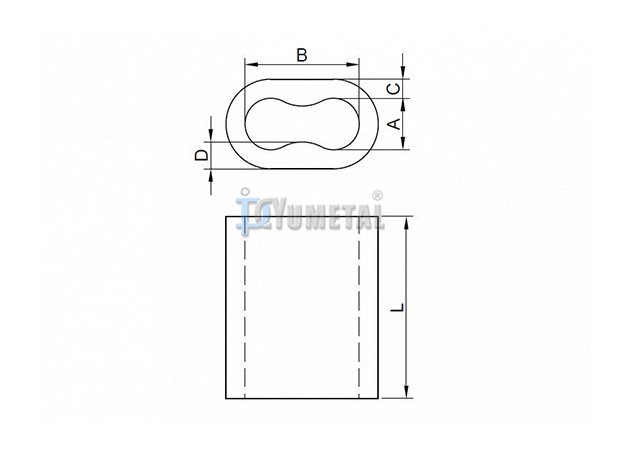

| Art No. | Size | A | B | C | D | L | Weight |
| mm | mm | mm | mm | mm | mm | kg/1000pcs | |
| FE05-06 | 6 | 7.00 | 13.80 | 3.20 | 3.80 | 24 | 10 |
| FE05-07 | 7 | 8.20 | 16.20 | 3.60 | 4.25 | 26 | 14 |
| FE05-08 | 8 | 9.40 | 18.60 | 4.00 | 4.70 | 32 | 22 |
| FE05-09 | 9 | 10.22 | 20.70 | 4.30 | 5.52 | 36 | 29 |
| FE05-10 | 10 | 11.60 | 23.00 | 4.50 | 5.50 | 40 | 37 |
| FE05-12 | 12 | 13.62 | 27.60 | 5.30 | 6.92 | 48 | 63 |
| FE05-14 | 14 | 15.89 | 32.20 | 5.53 | 7.42 | 56 | 88 |
| FE05-16 | 16 | 18.16 | 36.80 | 6.32 | 8.48 | 64 | 130 |
| FE05-18 | 18 | 20.43 | 41.40 | 7.11 | 9.54 | 72 | 186 |
| FE05-20 | 20 | 23.10 | 46.00 | 7.70 | 9.20 | 80 | 245 |
| FE05-22 | 22 | 25.40 | 50.60 | 8.30 | 10.00 | 88 | 319 |
| FE05-24 | 24 | 27.80 | 55.30 | 8.90 | 10.90 | 96 | 408 |
| FE05-26 | 26 | 29.90 | 59.80 | 10.70 | 12.90 | 104 | 581 |
| FE05-28 | 28 | 32.20 | 64.40 | 11.30 | 13.60 | 112 | 714 |
| FE05-30 | 30 | 34.50 | 69.00 | 11.80 | 14.30 | 120 | 859 |
| FE05-32 | 32 | 36.80 | 73.60 | 12.50 | 15.20 | 128 | 1026 |
