| Art No. | Size | Dimensions(mm) | WLL Ton | Weight kg/pc | ||||

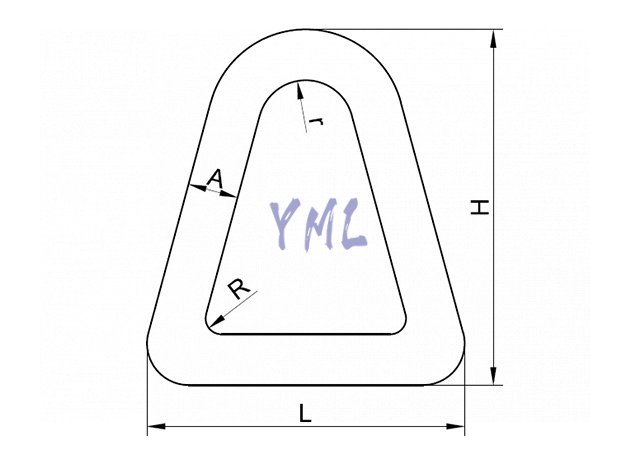

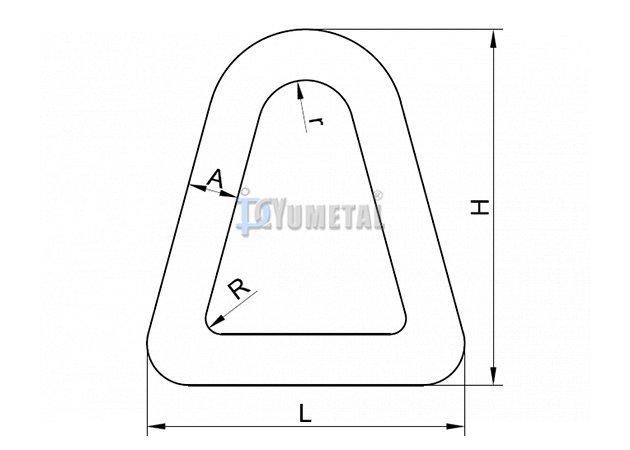

| A | H | L | r | R | ||||
| RN09-1# | 1# | 16.00 | 112.00 | 100.00 | 15.00 | 5.00 | 2.00 | 0.47 |
| RN09-2# | 2# | 20.00 | 160.00 | 145.00 | 33.50 | 6.00 | 3.00 | 1.12 |
| RN09-3# | 3# | 22.00 | 175.00 | 178.00 | 32.00 | 10.00 | 4.00 | 1.52 |
| RN09-4# | 4# | 28.00 | 235.00 | 260.00 | 45.00 | 15.00 | 6.00 | 3.50 |
