| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||

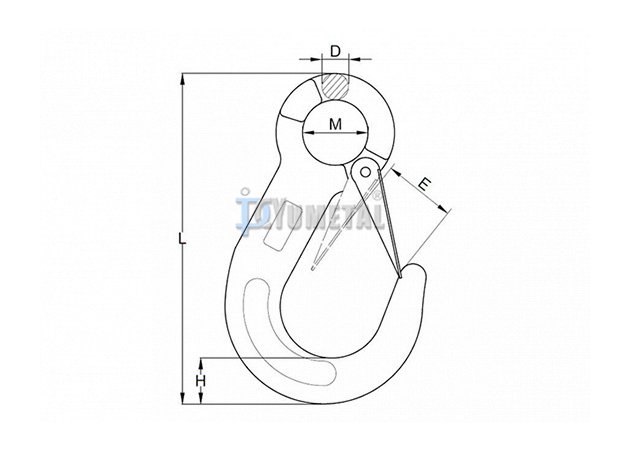

| mm | ton | ton | D±1 | E ±2 | H±1 | M±1 | L±2.5 | kg/pc | |
| GK28-06 | 6 | 1.4 | 5.6 | 10 | 18.5 | 21 | 20.5 | 111 | 0.32 |
| GK28-08 | 8 | 2.5 | 10 | 11 | 25 | 27.5 | 25 | 137.5 | 0.60 |
| GK28-10 | 10 | 4 | 16 | 16 | 28 | 33 | 34 | 171.5 | 1.20 |
| GK28-13 | 13 | 6.7 | 26.8 | 19 | 38 | 43.5 | 43 | 219 | 2.20 |
| GK28-16 | 16 | 10 | 40 | 24.5 | 44 | 50 | 50 | 260 | 3.50 |
| GK28-20 | 20 | 16 | 64 | 27 | 52 | 56 | 55 | 298 | 7.15 |
| GK28-22 | 22 | 19 | 76 | 29 | 66 | 62 | 60 | 330 | 11.50 |
| GK28-26 | 26 | 26.5 | 106 | 35 | 73 | 75 | 70 | 376 | 12.20 |
| GK28-32 | 32 | 39.3 | 157.2 | 39 | 87 | 89 | 81.5 | 458 | 17.50 |
