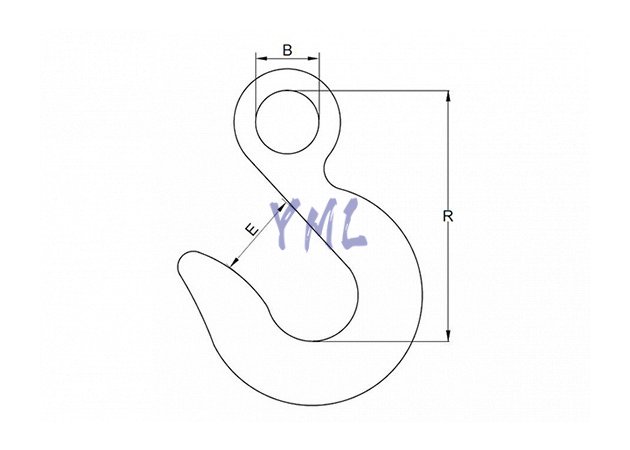

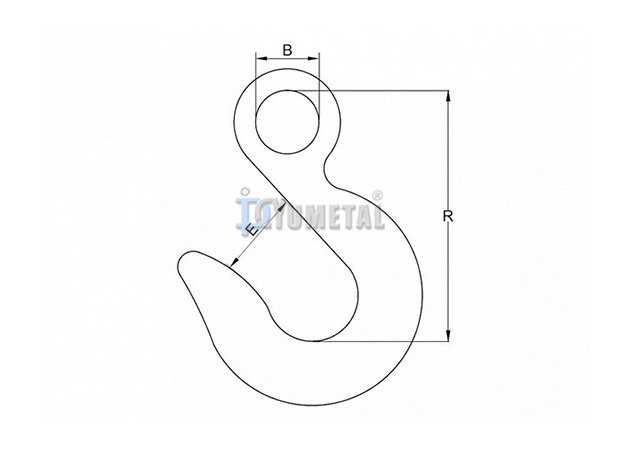

| Art No. | Size | Dimensions (inch) | WLL | Weight | |||
| inch | B | E | R | carbon(ton) | alloy(ton) | lb/pc | |
| GK22-1/4 | 1/4" | 0.50 | 0.94 | 2.56 | 0.88 | 1.25 | 0.44 |
| GK22-5/16 | 5/16" | 0.63 | 1.06 | 2.91 | 1.30 | 1.95 | 0.64 |
| GK22-3/8 | 3/8" | 0.72 | 1.31 | 3.35 | 1.82 | 2.38 | 1.10 |
| GK22-7/16 | 7/16" | 0.81 | 1.56 | 3.88 | 2.27 | 3.18 | 1.61 |
| GK22-1/2 | 1/2" | 0.94 | 1.69 | 4.29 | 2.95 | 4.08 | 2.57 |
| GK22-5/8 | 5/8" | 1.13 | 2.01 | 5.24 | 4.20 | 6.12 | 4.60 |
| GK22-3/4 | 3/4" | 1.38 | 2.13 | 5.80 | 5.67 | 8.74 | 6.49 |
