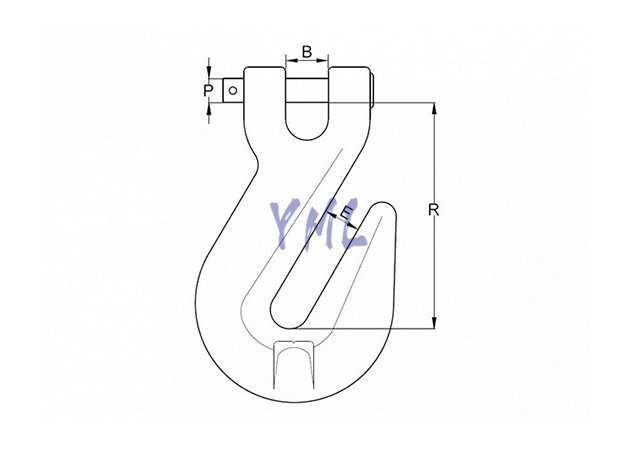

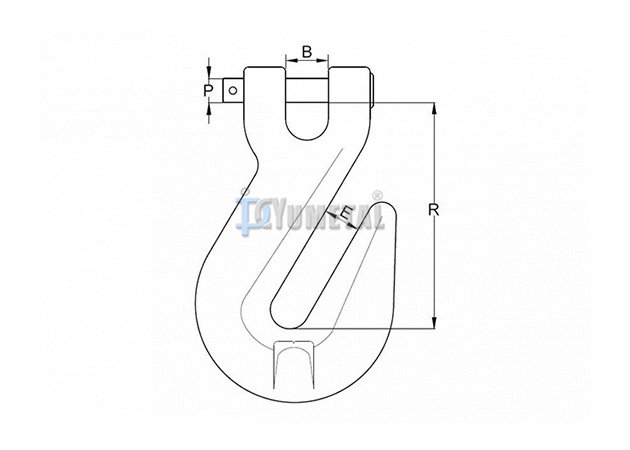

| Art No. | Size | Dimensions (inch) | WLL | Weight | ||||
| inch | B | E | P | R | carbon(ton) | alloy(ton) | lb/pc | |
| GK19-1/4 | 1/4" | 0.36 | 0.39 | 0.31 | 1.97 | 1.18 | 1.63 | 0.44 |
| GK19-5/16 | 5/16" | 0.40 | 0.44 | 0.45 | 2.21 | 1.77 | 2.45 | 0.81 |
| GK19-3/8 | 3/8" | 0.47 | 0.50 | 0.47 | 2.63 | 2.45 | 3.40 | 1.08 |
| GK19-7/16 | 7/16" | 0.57 | 0.57 | 0.55 | 2.89 | 3.27 | 4.54 | 1.63 |
| GK19-1/2 | 1/2" | 0.66 | 0.66 | 0.63 | 3.29 | 4.17 | 5.78 | 2.35 |
| GK19-5/8 | 5/8" | 0.91 | 0.78 | 0.75 | 4.14 | 5.78 | 8.62 | 4.27 |
| GK19-3/4 | 3/4" | 0.94 | 0.91 | 0.87 | 4.56 | 8.40 | 12.25 | 6.49 |
