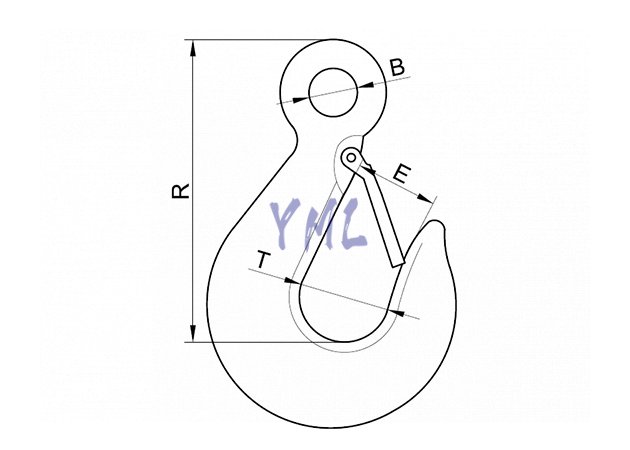

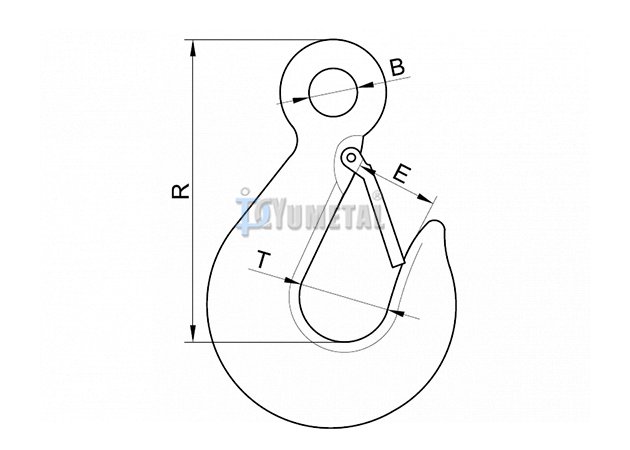

| Art No. | Size | WLL | B | E | R | T | Weight | ||
| inch | mm | carbon steel (t) | alloy steel (t) | mm | mm | mm | mm | kg/pc | |
| GK15-06 | 1/4" | 6 | 0.88 | 1.25 | 12.7 | 19.0 | 65.1 | 20.0 | 0.22 |
| GK15-08 | 5/16" | 8 | 1.30 | 1.95 | 16.0 | 22.3 | 73.8 | 20.0 | 0.28 |
| GK15-10 | 3/8" | 10 | 1.82 | 2.38 | 18.3 | 27.9 | 85.2 | 25.9 | 0.47 |
| GK15-11 | 7/16" | 11 | 2.27 | 3.18 | 20.5 | 31.7 | 98.4 | 26.9 | 0.74 |
| GK15-13 | 1/2" | 13 | 2.95 | 4.08 | 23.8 | 35.0 | 109.0 | 33.0 | 1.11 |
| GK15-16 | 5/8" | 16 | 4.20 | 6.12 | 28.7 | 36.8 | 134.6 | 38.9 | 1.87 |
| GK15-19 | 3/4" | 19 | 5.67 | 8.74 | 35.1 | 40.3 | 147.3 | 41.1 | 3.07 |
