| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | |||||

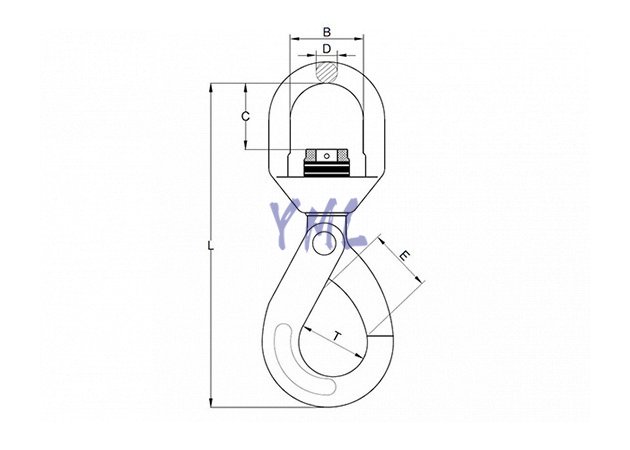

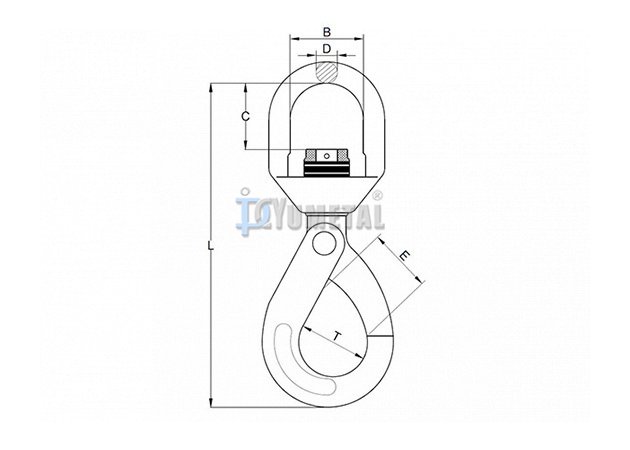

| mm | ton | ton | B±2 | C ±2 | D±1 | L±3 | T±1.5 | E±2 | kg/pc | |
| GK04-06 | 6 | 1.12 | 4.48 | 32.5 | 34.8 | 11.5 | 163.3 | 34 | 27 | 0.71 |
| GK04-08 | 7/8 | 2 | 8 | 36 | 40 | 13 | 195.2 | 46 | 35 | 1.10 |
| GK04-10 | 10 | 3.15 | 12.6 | 42 | 48 | 15.5 | 237 | 56 | 44 | 2.00 |
| GK04-13 | 13 | 5.3 | 21.2 | 50 | 58 | 17 | 282 | 69 | 53 | 4.00 |
| GK04-16 | 16 | 8 | 32 | 61 | 61 | 21.5 | 341.5 | 86 | 60 | 7.30 |
| GK04-20 | 20 | 12.5 | 50 | 76 | 75.5 | 26.5 | 399.5 | 100 | 87 | 11.60 |
| GK04-22 | 22 | 15 | 60 | 97 | 97 | 33 | 461 | 98 | 80 | 16.00 |
| GK04-26 | 26 | 21.2 | 84.8 | 123 | 115 | 42 | 536.5 | 110 | 98 | 21.50 |
