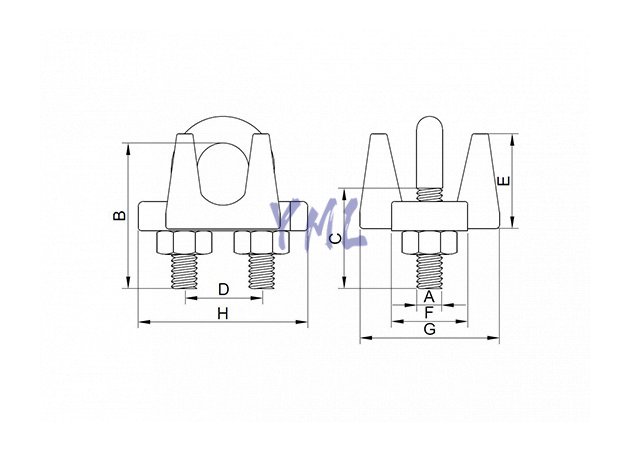

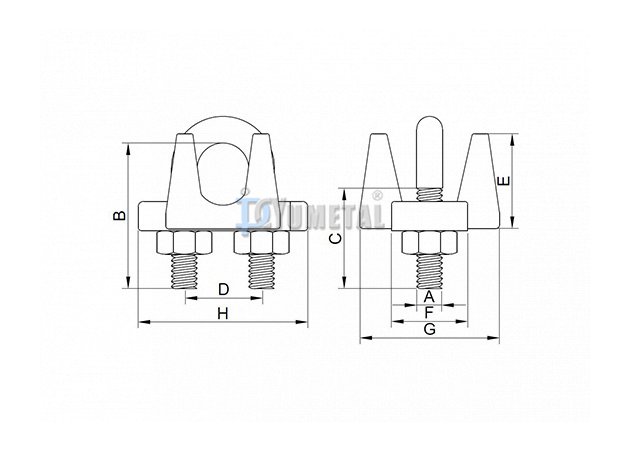

| Art No. | Size | Dimensions (inch) | Weight | ||||||||
| inch | mm | A | B | C | D | E | F | G | H | lb/pc | |
| CL02-1/8 | 1/8" | 3-4 | 0.22 | 0.72 | 0.44 | 0.47 | 0.41 | 0.38 | 0.81 | 0.94 | 0.06 |
| CL02-3/16 | 3/16" | 5 | 0.25 | 0.97 | 0.56 | 0.59 | 0.50 | 0.44 | 0.94 | 1.16 | 0.10 |
| CL02-1/4 | 1/4" | 6-7 | 0.31 | 1.03 | 0.60 | 0.75 | 0.66 | 0.56 | 1.19 | 1.44 | 0.19 |
| CL02-5/16 | 5/16" | 8 | 0.38 | 1.38 | 0.75 | 0.88 | 0.72 | 0.69 | 1.31 | 1.69 | 0.28 |
| CL02-3/8 | 3/8" | 9-10 | 0.44 | 1.50 | 0.75 | 1.00 | 0.91 | 0.75 | 1.63 | 1.94 | 0.48 |
| CL02-7/16 | 7/16" | 11 | 0.50 | 1.88 | 1.00 | 1.19 | 1.03 | 0.88 | 1.81 | 2.28 | 0.78 |
| CL02-1/2 | 1/2" | 12-13 | 0.50 | 1.88 | 1.00 | 1.19 | 1.13 | 0.88 | 1.91 | 2.28 | 0.80 |
| CL02-9/16 | 9/16" | 14-15 | 0.56 | 2.25 | 1.25 | 1.31 | 1.22 | 0.94 | 2.06 | 2.50 | 1.09 |
| CL02-5/8 | 5/8" | 16 | 0.56 | 2.38 | 1.25 | 1.31 | 1.34 | 0.94 | 2.06 | 2.50 | 1.10 |
| CL02-3/4 | 3/4" | 18-20 | 0.62 | 2.75 | 1.44 | 1.50 | 1.41 | 1.06 | 2.25 | 2.84 | 1.42 |
| CL02-7/8 | 7/8" | 22 | 0.75 | 3.12 | 1.62 | 1.75 | 1.59 | 1.25 | 2.44 | 3.16 | 2.12 |
| CL02-1 | 1" | 24-26 | 0.75 | 3.50 | 1.81 | 1.88 | 1.78 | 1.25 | 2.63 | 3.47 | 2.52 |
| CL02-1 1/8 | 1-1/8" | 28-30 | 0.75 | 3.88 | 2.00 | 2.00 | 1.91 | 1.25 | 2.81 | 3.59 | 2.83 |
| CL02-1 1/4 | 1-1/4" | 32-34 | 0.88 | 4.25 | 2.13 | 2.31 | 2.19 | 1.44 | 3.13 | 4.13 | 4.38 |
| CL02-1 3/8 | 1-3/8" | 36 | 0.88 | 4.63 | 2.31 | 2.38 | 2.31 | 1.44 | 3.13 | 4.19 | 4.42 |
| CL02-1 1/2 | 1-1/2" | 38 | 0.88 | 4.94 | 2.38 | 2.59 | 2.44 | 1.44 | 3.41 | 4.44 | 5.44 |
| CL02-1 5/8 | 1-5/8" | 41-42 | 1.00 | 5.31 | 2.62 | 2.75 | 2.66 | 1.63 | 3.63 | 4.75 | 7.04 |
| CL02-1 3/4 | 1-3/4" | 44-46 | 1.13 | 5.75 | 2.75 | 3.06 | 2.94 | 1.81 | 3.81 | 5.28 | 9.34 |
| CL02-2 | 2" | 48-52 | 1.25 | 6.44 | 3.00 | 3.38 | 3.28 | 2.00 | 4.44 | 5.88 | 13.00 |
| CL02-2 1/4 | 2-1/4" | 56-58 | 1.25 | 7.13 | 3.19 | 3.88 | 3.49 | 2.00 | 4.50 | 6.38 | 16.00 |
| CL02-2 1/2 | 2-1/2" | 62-65 | 1.25 | 7.69 | 3.44 | 4.13 | 3.69 | 2.00 | 4.05 | 6.63 | 19.00 |
| CL02-2 3/4 | 2-3/4" | 68-72 | 1.25 | 8.31 | 3.56 | 4.38 | 4.88 | 2.00 | 5.00 | 6.88 | 23.00 |
| CL02-3 | 3" | 75-78 | 1.50 | 9.19 | 3.88 | 4.75 | 5.69 | 2.38 | 5.88 | 7.63 | 31.00 |
| CL02-3 1/2 | 3-1/2" | 85-90 | 1.50 | 10.75 | 4.50 | 5.50 | 6.00 | 2.38 | 6.19 | 8.38 | 40.00 |
