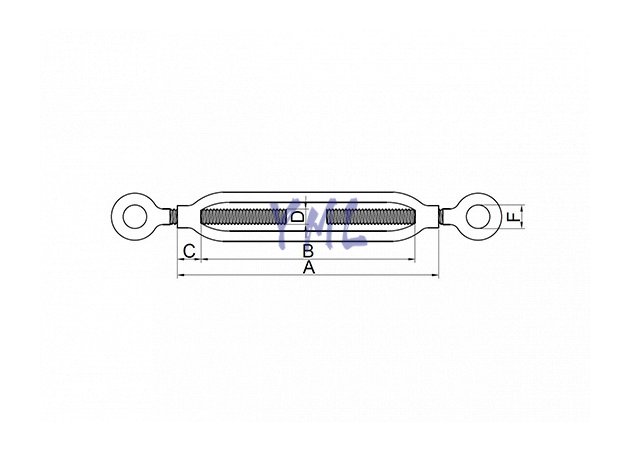

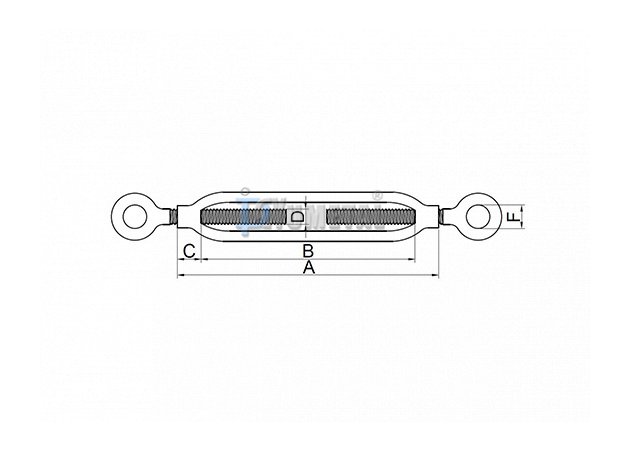

| Art No. | Size(D) | Dimensions (mm) | WLL | Weight | ||||
| mm | in | A | B | C | F | ton | kg/pc | |
| TB10-06 | 6 | 1/4" | 100 | 78.00 | 8.00 | 10 | 0.10 | 0.116 |
| TB10-08 | 8 | 5/16" | 125 | 100.00 | 10.00 | 12 | 0.16 | 0.220 |
| TB10-09 | 9 | 3/8" | 150 | 122.00 | 12.00 | 16 | 0.28 | 0.295 |
| TB10-12 | 12 | 1/2" | 200 | 166.00 | 15.00 | 21 | 0.72 | 0.580 |
| TB10-16 | 16 | 5/8" | 250 | 208.00 | 19.00 | 24 | 1.16 | 1.070 |
| TB10-19 | 19 | 3/4" | 300 | 252.00 | 23.00 | 28 | 1.74 | 1.790 |
| TB10-22 | 22 | 7/8" | 325 | 273.00 | 27.00 | 33 | 2.50 | 2.550 |
| TB10-25 | 25 | 1" | 350 | 290.00 | 31.00 | 38 | 3.00 | 3.800 |
| TB10-32 | 32 | 1-1/4" | 400 | 322.00 | 39.00 | 36X70 | 5.00 | 7.670 |
| TB10-38 | 38 | 1-1/2" | 450 | 358.00 | 46.00 | 40X80 | 7.50 | 13.700 |
