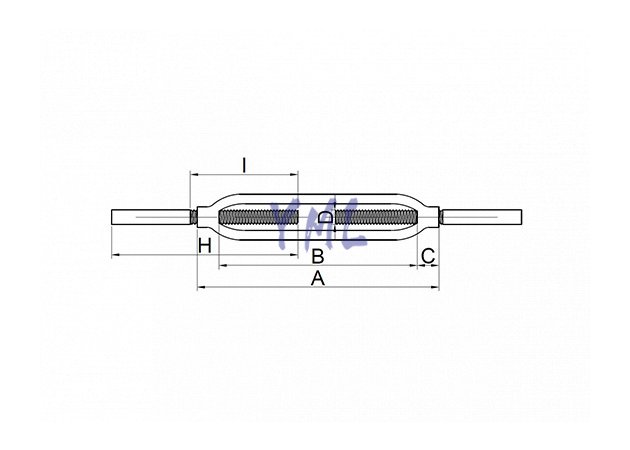

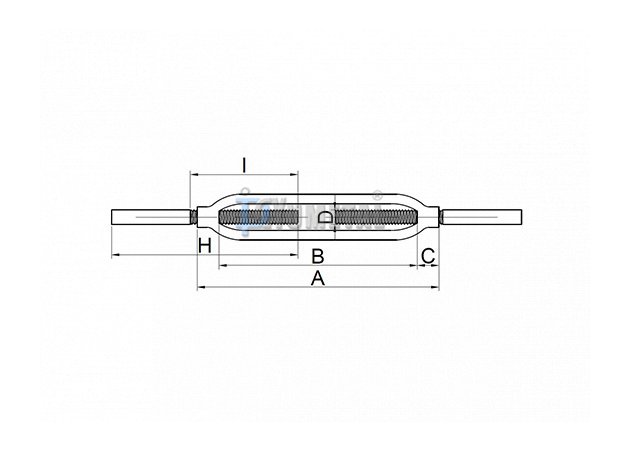

| Art No. | Size(D) | Dimensions (mm) | WLL | Weight | |||||
| mm | in | A | B | C | H | I | ton | kg/pc | |
| TB07-06 | 6 | 1/4" | 100 | 78.00 | 8.00 | 96.00 | 50.00 | 0.10 | 0.112 |
| TB07-08 | 8 | 5/16" | 125 | 100.00 | 10.00 | 100.00 | 60.00 | 0.16 | 0.207 |
| TB07-09 | 9 | 3/8" | 150 | 122.00 | 12.00 | 130.00 | 70.00 | 0.28 | 0.271 |
| TB07-12 | 12 | 1/2" | 200 | 166.00 | 15.00 | 150.00 | 95.00 | 0.72 | 0.510 |
| TB07-16 | 16 | 5/8" | 250 | 208.00 | 19.00 | 180.00 | 120.00 | 1.16 | 0.950 |
| TB07-19 | 19 | 3/4" | 300 | 252.00 | 23.00 | 220.00 | 140.00 | 1.74 | 1.620 |
| TB07-22 | 22 | 7/8" | 325 | 273.00 | 27.00 | 250.00 | 155.00 | 2.50 | 2.360 |
| TB07-25 | 25 | 1" | 350 | 290.00 | 31.00 | 270.00 | 170.00 | 3.00 | 3.270 |
| TB07-32 | 32 | 1-1/4" | 400 | 322.00 | 39.00 | 300.00 | 200.00 | 5.00 | 6.410 |
| TB07-38 | 38 | 1-1/2" | 450 | 358.00 | 46.00 | 330.00 | 225.00 | 7.50 | 13.000 |
