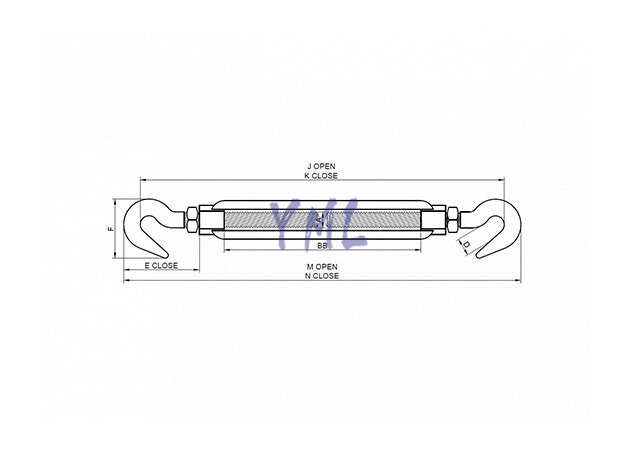

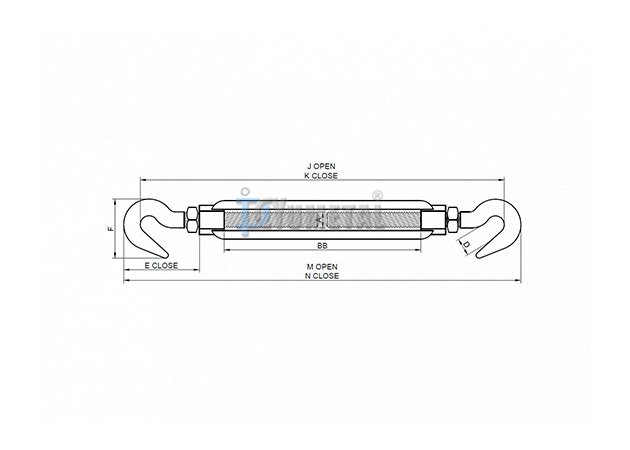

| Art No. | Size | Working Load Limit | Dimensions (in.) | Weight | ||||||||
| (inch) | (lbs) | A | D | E Closed | F | J Open | K Closed | M Open | N Closed | BB | (lbs/pc) | |
| TB03-1/4×4HH | 1/4"×4" | 500 | 0.25 | 0.45 | 1.59 | 1.27 | 11.12 | 7.12 | 11.94 | 7.94 | 4.00 | 0.30 |
| TB03-5/16×4-1/2HH | 5/16"×4-1/2" | 800 | 0.31 | 0.50 | 1.94 | 1.50 | 12.81 | 8.31 | 13.81 | 9.31 | 4.50 | 0.47 |
| TB03-3/8×6HH | 3/8"×6" | 1200 | 0.38 | 0.56 | 2.30 | 1.77 | 16.50 | 10.50 | 17.72 | 11.72 | 6.00 | 0.78 |
| TB03-1/2×6HH | 1/2"×6" | 2200 | 0.44 | 0.66 | 2.94 | 2.28 | 18.82 | 11.82 | 20.38 | 13.38 | 6.00 | 1.60 |
| TB03-1/2×9HH | 1/2"×9" | 2200 | 0.50 | 0.66 | 2.94 | 2.28 | 24.82 | 14.82 | 26.38 | 16.38 | 9.00 | 1.83 |
| TB03-1/2×12HH | 1/2"×12" | 2200 | 0.50 | 0.66 | 2.94 | 2.28 | 30.82 | 17.82 | 32.38 | 19.38 | 12.00 | 2.28 |
| TB03-5/8×6HH | 5/8"×6" | 3500 | 0.50 | 0.90 | 3.69 | 2.81 | 20.50 | 13.25 | 22.50 | 15.25 | 6.00 | 2.75 |
| TB03-5/8×9HH | 5/8"×9" | 3500 | 0.63 | 0.90 | 3.69 | 2.81 | 26.50 | 16.25 | 28.50 | 18.25 | 9.00 | 3.38 |
| TB03-5/8×12HH | 5/8"×12" | 3500 | 0.63 | 0.90 | 3.69 | 2.81 | 32.50 | 19.25 | 34.50 | 21.25 | 12.00 | 3.50 |
| TB03-3/4×6HH | 3/4"×6" | 5200 | 0.75 | 0.98 | 4.52 | 3.33 | 22.38 | 14.88 | 24.78 | 17.28 | 6.00 | 3.89 |
| TB03-3/4×9HH | 3/4"×9" | 5200 | 0.75 | 0.98 | 4.52 | 3.33 | 28.38 | 17.88 | 30.78 | 20.28 | 9.00 | 5.28 |
| TB03-3/4×12HH | 3/4"×12" | 5200 | 0.75 | 0.98 | 4.52 | 3.33 | 34.38 | 20.88 | 36.78 | 23.28 | 12.00 | 5.43 |
| TB03-3/4×18HH | 3/4"×18" | 5200 | 0.75 | 0.98 | 4.52 | 3.33 | 46.38 | 26.88 | 48.78 | 29.28 | 18.00 | 8.12 |
| TB03-7/8×12HH | 7/8"×12" | 7200 | 0.88 | 1.13 | 5.19 | 3.78 | 36.00 | 22.25 | 38.75 | 31.00 | 12.00 | 8.10 |
| TB03-7/8×18HH | 7/8"×18" | 7200 | 0.88 | 1.13 | 5.19 | 3.78 | 48.00 | 28.25 | 50.75 | 25.00 | 18.00 | 9.95 |
| TB03-1×6HH | 1"×6" | 10000 | 1.00 | 1.25 | 5.84 | 4.25 | 25.63 | 17.63 | 28.69 | 20.69 | 6.00 | 9.33 |
| TB03-1×12HH | 1"×12" | 10000 | 1.00 | 1.25 | 5.84 | 4.25 | 37.63 | 23.63 | 40.69 | 26.69 | 12.00 | 11.93 |
| TB03-1×18HH | 1"×18" | 10000 | 1.00 | 1.25 | 5.84 | 4.25 | 49.63 | 29.63 | 52.69 | 32.69 | 18.00 | 14.00 |
| TB03-1×24HH | 1"×24" | 10000 | 1.00 | 1.25 | 5.84 | 4.25 | 61.63 | 35.63 | 64.69 | 38.69 | 6.00 | 17.25 |
| TB03-1-1/4×12HH | 1-1/4"×12" | 15200 | 1.25 | 1.50 | 7.22 | 5.13 | 40.44 | 25.94 | 44.06 | 29.56 | 12.00 | 20.58 |
| TB03-1-1/4×18HH | 1-1/4×18" | 15200 | 1.25 | 1.50 | 7.22 | 5.13 | 52.44 | 31.94 | 55.06 | 35.56 | 18.00 | 23.00 |
| TB03-1-1/4×24HH | 1-1/4"×24" | 15200 | 1.25 | 1.50 | 7.22 | 5.13 | 64.44 | 37.94 | 68.06 | 41.56 | 24.00 | 27.00 |
| TB03-1-1/2×12HH | 1-1/2"×12" | 21400 | 1.50 | 1.88 | 8.34 | 5.75 | 43.94 | 28.94 | 47.44 | 32.44 | 12.00 | 27.50 |
| TB03-1-1/2×18HH | 1-1/2"×18" | 21400 | 1.50 | 1.88 | 8.34 | 5.75 | 55.96 | 34.94 | 59.44 | 38.44 | 18.00 | 31.00 |
| TB03-1-1/2×24HH | 1-1/2"×24" | 21400 | 1.50 | 1.88 | 8.34 | 5.75 | 67.94 | 40.94 | 71.44 | 44.44 | 24.00 | 37.50 |
