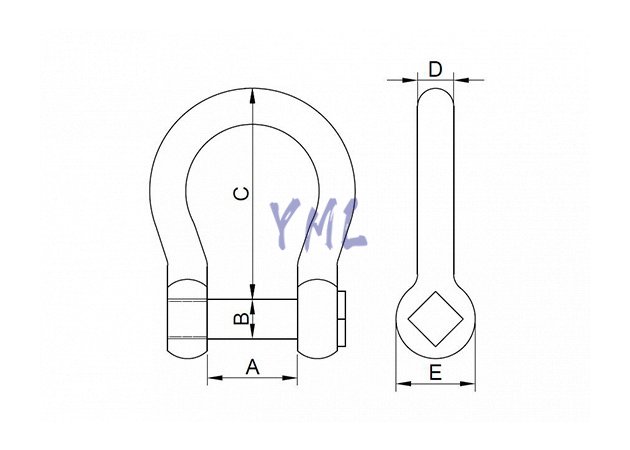

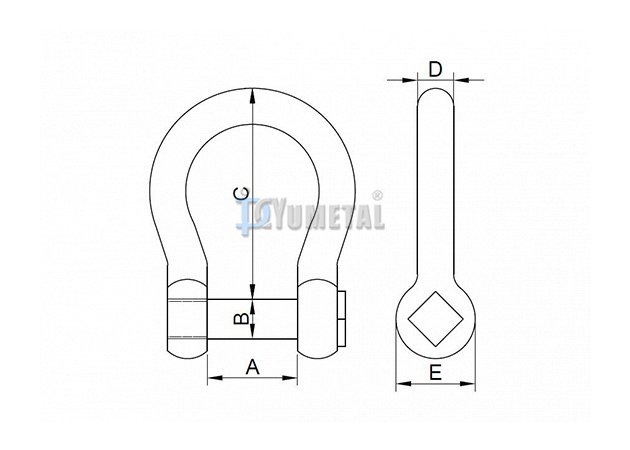

| Art No. | Size | WLL | Dimensions (in.) | Tolerance(+/-) | Weight | |||||
| in. | ton | A | B | C | D | F | C | A | lb/pc | |
| SH16-3/16 | 3/16" | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.56 | 0.06 | 0.06 | 0.6 |
| SH16-1/4 | 1/4" | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.61 | 0.06 | 0.06 | 0.1 |
| SH16-5/16 | 5/16" | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.75 | 0.06 | 0.06 | 0.19 |
| SH16-3/8 | 3/8" | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 0.91 | 0.13 | 0.06 | 0.31 |
| SH16-7/16 | 7/16" | 1-1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.06 | 0.13 | 0.06 | 0.38 |
| SH16-1/2 | 1/2" | 2 | 0.81 | 0.64 | 1.88 | 0.5 | 1.19 | 0.13 | 0.06 | 0.72 |
| SH16-5/8 | 5/8" | 3-1/4 | 1.06 | 0.77 | 2.38 | 0.63 | 1.5 | 0.13 | 0.06 | 1.37 |
| SH16-3/4 | 3/4" | 4-3/4 | 1.25 | 0.89 | 2.81 | 0.75 | 1.81 | 0.25 | 0.06 | 2.35 |
| SH16-7/8 | 7/8" | 6-1/2 | 1.44 | 1.02 | 3.31 | 0.88 | 2.09 | 0.25 | 0.06 | 3.62 |
| SH16-1 | 1" | 8-1/2 | 1.69 | 1.15 | 3.75 | 1 | 2.38 | 0.25 | 0.06 | 5.03 |
| SH16-1 1/8 | 1-1/8" | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.13 | 2.69 | 0.25 | 0.06 | 7.41 |
| SH16-1 1/4 | 1-1/4" | 12 | 2.03 | 1.4 | 4.69 | 1.29 | 3 | 0.25 | 0.06 | 9.5 |
| SH16-1 3/8 | 1-3/8" | 13-1/2 | 2.25 | 1.53 | 5.25 | 1.42 | 3.31 | 0.25 | 0.13 | 13.53 |
| SH16-1 1/2 | 1-1/2" | 17 | 2.38 | 1.66 | 5.75 | 1.53 | 3.63 | 0.25 | 0.13 | 17.2 |
| SH16-1 3/4 | 1-3/4" | 25 | 2.88 | 2.04 | 7 | 1.84 | 4.19 | 0.25 | 0.13 | 27.78 |
