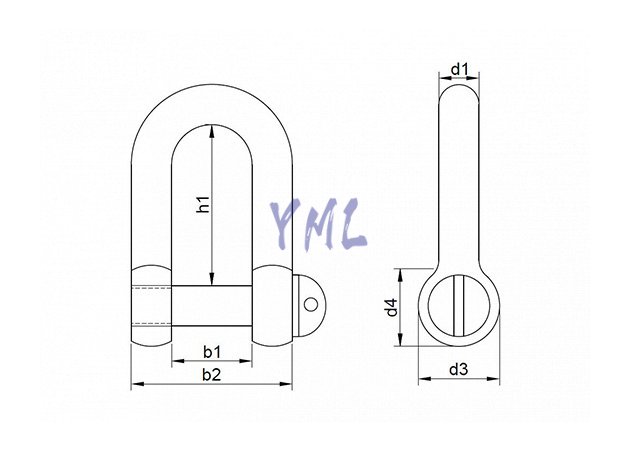

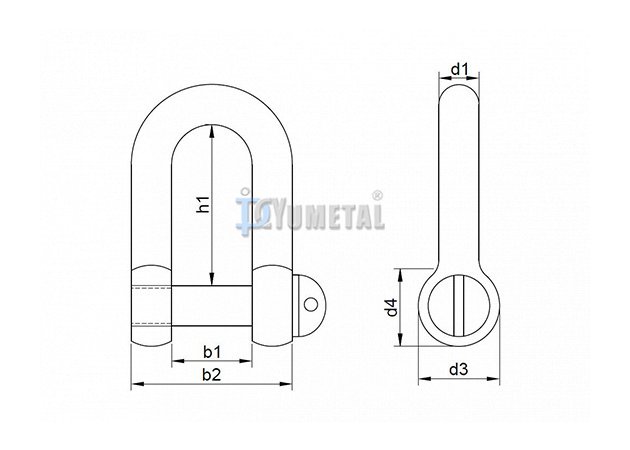

| Art No. | Size | WLL | Dimensions (mm) | |||||
| in. | ton | b1 | b2 | d1 | d3 | d4 | h1 | |
| SH13-0.10 | 0.10 | 0.10 | 7.0 | 15.0 | 4.0 | 10.0 | 5.0 | 15.5 |
| SH13-0.16 | 0.16 | 0.16 | 8.0 | 18.0 | 5.0 | 12.0 | 6.0 | 18.0 |
| SH13-0.25 | 0.25 | 0.25 | 11.0 | 25.0 | 7.0 | 16.0 | 8.0 | 24.0 |
| SH13-0.40 | 0.40 | 0.40 | 14.0 | 30.0 | 8.0 | 20.0 | 10.0 | 30.0 |
| SH13-0.63 | 0.63 | 0.63 | 17.0 | 37.0 | 10.0 | 24.0 | 12.0 | 36.0 |
| SH13-1.00 | 1.00 | 1.00 | 21.0 | 47.0 | 13.0 | 32.0 | 16.0 | 49.0 |
| SH13-1.60 | 1.60 | 1.60 | 27.0 | 61.0 | 17.0 | 40.0 | 20.0 | 61.0 |
| SH13-2.00 | 2.00 | 2.00 | 30.0 | 68.0 | 19.0 | 44.0 | 22.0 | 67.0 |
| SH13-2.50 | 2.50 | 2.50 | 33.0 | 75.0 | 21.0 | 48.0 | 24.0 | 73.0 |
| SH13-3.00 | 3.00 | 3.15 | 38.0 | 86.0 | 24.0 | 54.0 | 27.0 | 83.5 |
| SH13-4.00 | 4.00 | 4.00 | 42.0 | 96.0 | 27.0 | 60.0 | 30.0 | 91.0 |
| SH13-5.00 | 5.00 | 5.00 | 47.0 | 107.0 | 30.0 | 72.0 | 36.0 | 111.0 |
| SH13-6.00 | 6.00 | 6.30 | 53.0 | 121.0 | 34.0 | 78.0 | 39.0 | 119.5 |
| SH13-8.00 | 8.00 | 8.00 | 60.0 | 136.0 | 38.0 | 90.0 | 45.0 | 139.5 |
| SH13-10.0 | 10.00 | 10.00 | 66.0 | 150.0 | 42.0 | 96.0 | 48.0 | 147.5 |
| SH13-12.0 | 12.00 | 12.50 | 73.0 | 167.0 | 47.0 | 104.0 | 52.0 | 158.0 |
| SH13-16.0 | 16.00 | 16.00 | 81.0 | 185.0 | 52.0 | 120.0 | 60.0 | 185.0 |
| SH13-20.0 | 20.00 | 20.00 | 90.0 | 206.0 | 58.0 | 136.0 | 68.0 | 211.0 |
| SH13-25.0 | 25.00 | 25.00 | 100.0 | 226.0 | 63.0 | 144.0 | 72.0 | 221.0 |
