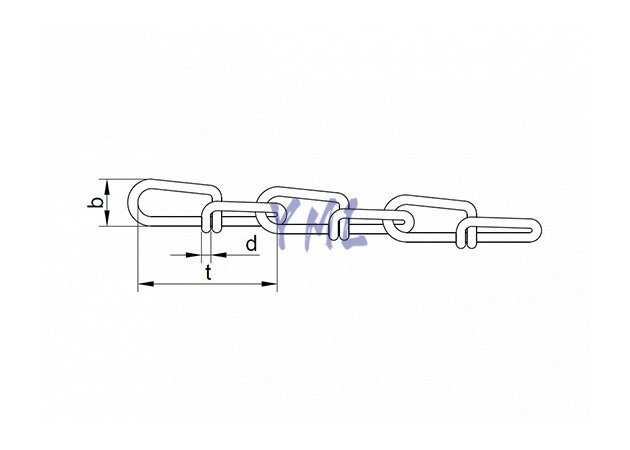

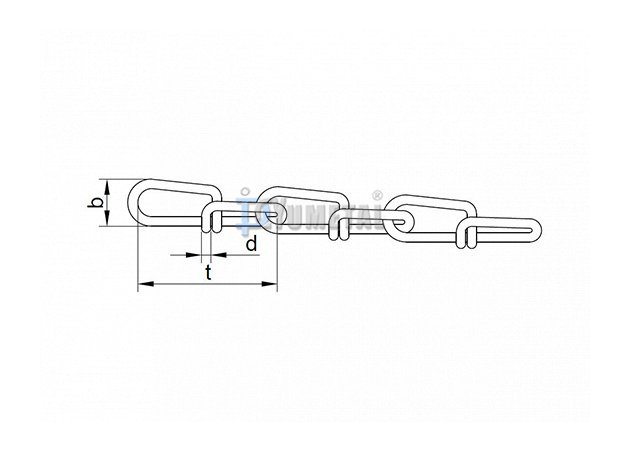

| Art No. | Diameter | Inside Length | Outside Width | Breaking Load | Weight |
| mm | mm | mm | kg | kg/100m | |
| CH28-1.4 | 1.4 | 21.0 | 6.5 | 16 | 4.2 |
| CH28-1.6 | 1.6 | 23.0 | 7.0 | 22 | 6.0 |
| CH28-1.8 | 1.8 | 26.0 | 8.0 | 30 | 7.3 |
| CH28-2.0 | 2.0 | 28.0 | 9.0 | 40 | 9.0 |
| CH28-2.2 | 2.2 | 31.0 | 10.0 | 50 | 11.0 |
| CH28-2.5 | 2.5 | 35.0 | 11.0 | 70 | 14.0 |
| CH28-2.8 | 2.8 | 39.0 | 12.5 | 90 | 17.0 |
| CH28-3.1 | 3.1 | 41.0 | 14.0 | 120 | 21.0 |
| CH28-3.4 | 3.4 | 44.0 | 15.0 | 140 | 26.0 |
| CH28-3.8 | 3.8 | 46.0 | 17.0 | 160 | 34.0 |
| CH28-4.2 | 4.2 | 50.0 | 19.0 | 170 | 41.0 |
| CH28-4.6 | 4.6 | 55.0 | 20.5 | 180 | 50.0 |
| CH28-5.0 | 5.0 | 60.0 | 22.5 | 190 | 57.0 |
