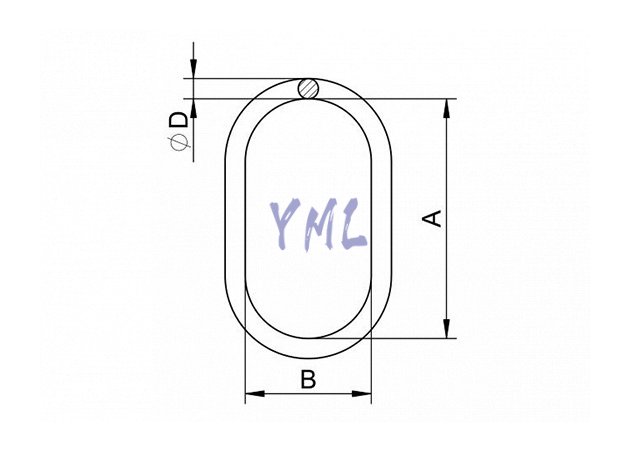

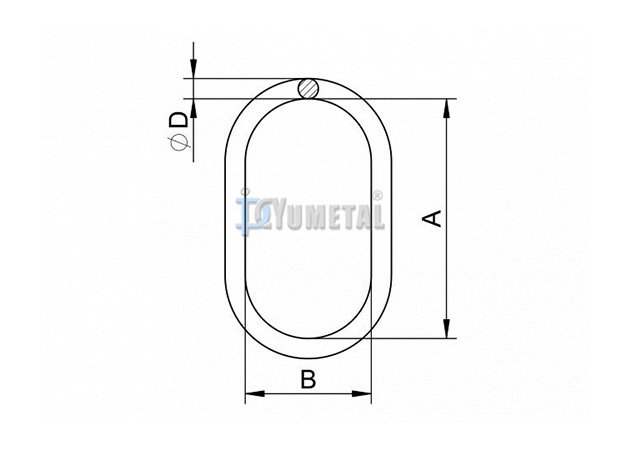

| Art No. | Size | WLL ton | Dimensions (mm) | Weight kg/pc | ||
| A | B | D | ||||
| RN23-16B7 | 16B7 | 3.2 | 190 | 100 | 16 | 0.86 |
| RN23-Y025 | Y025 | 6.4 | 300 | 210 | 25 | 3.53 |
| RN23-22B7 | 22B7 | 7 | 210 | 110 | 22 | 1.83 |
| RN23-Y032 | Y032 | 11 | 300 | 210 | 32 | 5.94 |
| RN23-28B7 | 28B7 | 11.5 | 270 | 140 | 28 | 3.8 |
| RN23-28B6 | 28B6 | 14.2 | 210 | 110 | 28 | 3.06 |
| RN23-32B6 | 32B6 | 17 | 270 | 140 | 32 | 5.05 |
| RN23-38B7 | 38B7 | 19 | 420 | 220 | 38 | 10.78 |
| RN23-38B6 | 38B6 | 28 | 270 | 140 | 38 | 7.29 |
| RN23-45B7 | 45B7 | 27 | 470 | 250 | 45 | 17.06 |
| RN23-50B6 | 50B6 | 45 | 380 | 200 | 50 | 17.65 |
| RN23-60B6 | 60B6 | 65 | 430 | 220 | 60 | 28.85 |
