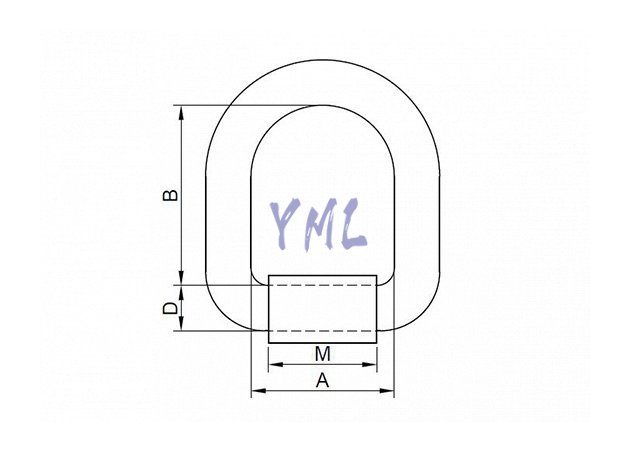

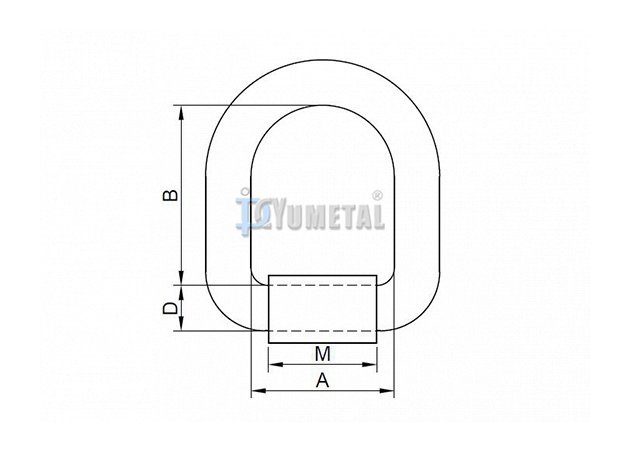

| Art No. | Size ton | Dimensions(mm) | WLL ton | Weight kg/pc | |||
| A | B | D | M | ||||
| RN14-01 | 1T | 41.00 | 78.50 | 13.00 | 37.00 | 1.12 | 0.40 |
| RN14-02 | 2T | 42.00 | 88.00 | 14.00 | 40.00 | 2.00 | 0.47 |
| RN14-03 | 3T | 45.00 | 94.00 | 17.00 | 42.50 | 3.15 | 0.69 |
| RN14-05 | 5T | 55.00 | 118.00 | 22.00 | 50.00 | 5.30 | 1.46 |
| RN14-08 | 8T | 70.00 | 141.00 | 26.50 | 66.50 | 8.00 | 2.50 |
| RN14-15 | 15T | 97.00 | 188.00 | 34.00 | 90.00 | 15.00 | 5.79 |
