| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | |||||

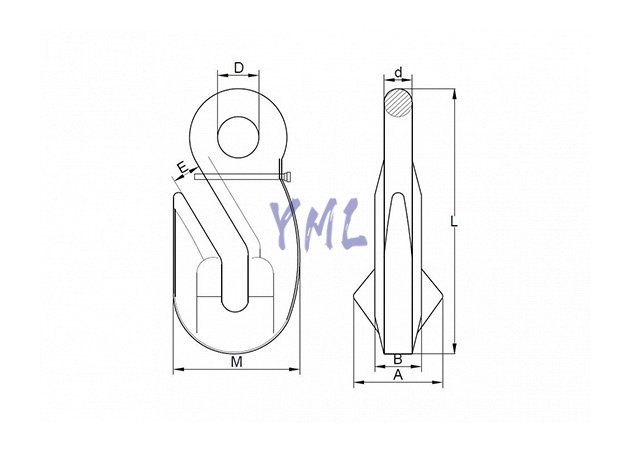

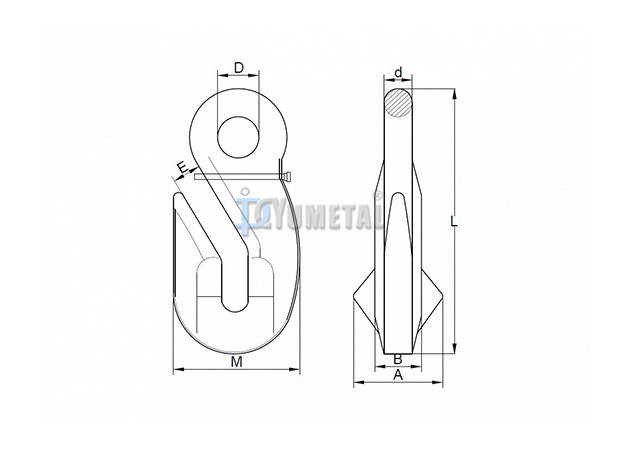

| mm | ton | ton | A±1 | B ±0.8 | d±0.5 | D±0.5 | E±0.5 | L±2 | kg/pc | |
| GK32-08 | 8 | 2.5 | 10 | 35 | 25 | 12 | 16.5 | 10.5 | 110 | 0.50 |
| GK32-10 | 10 | 4 | 16 | 64 | 32 | 15 | 21 | 14 | 136.5 | 1.00 |
| GK32-13 | 13 | 6.7 | 26.8 | 57 | 40 | 20.5 | 27.5 | 15.5 | 180 | 2.20 |
