| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||

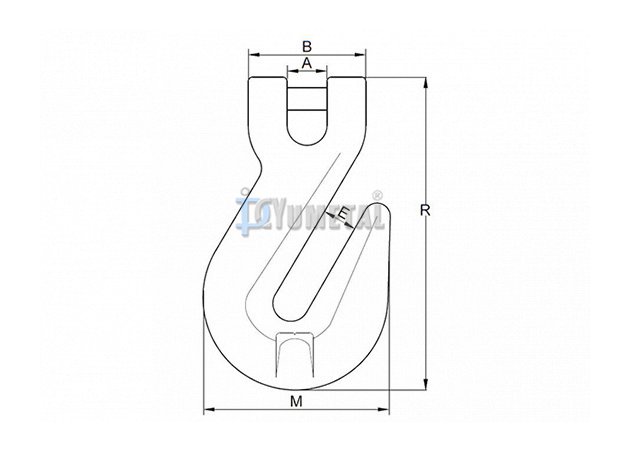

| mm | ton | ton | A±0.5 | B±1.5 | E±1 | M±2 | L±2 | kg/pc | |
| GK31-06 | 6 | 1.4 | 5.6 | 7.5 | 32 | 8 | 43.5 | 75 | 0.22 |
| GK31-08 | 8 | 2.5 | 10 | 9.5 | 36 | 10.8 | 53 | 91.5 | 0.34 |
| GK31-10 | 10 | 4 | 16 | 12 | 46 | 13.5 | 72 | 126 | 0.82 |
| GK31-13 | 13 | 6.7 | 26.8 | 15 | 59 | 16.5 | 96 | 163.5 | 1.75 |
| GK31-16 | 16 | 10 | 40 | 17.5 | 70 | 19.2 | 112.5 | 183.5 | 2.88 |
| GK31-20 | 20 | 16 | 64 | 24 | 85 | 24 | 143 | 224 | 4.84 |
| GK31-22 | 22 | 19 | 76 | 27 | 100 | 27 | 160.5 | 262 | 8.30 |
