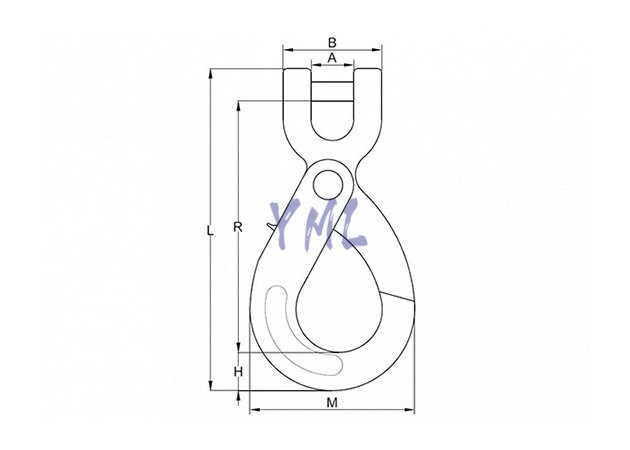

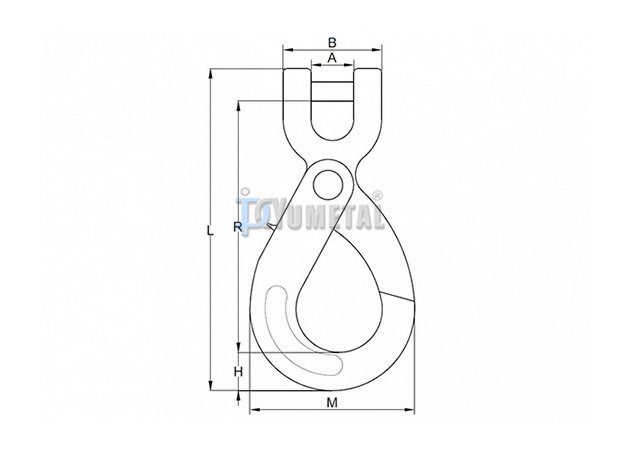

| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||||
| mm | ton | ton | A ±0.5 | B ±1 | E±1 | H±1 | R±2 | M±2 | L±3 | kg/pc | |
| GK26-06 | 6 | 1.4 | 5.6 | 7.5 | 32 | 28 | 20 | 96 | 70 | 131 | 0.50 |
| GK26-08 | 8 | 2.5 | 10 | 9.5 | 36 | 35.5 | 26 | 123 | 90 | 166 | 0.90 |
| GK26-10 | 10 | 4 | 16 | 12 | 46 | 45 | 30 | 144 | 109 | 196.5 | 1.60 |
| GK26-13 | 13 | 6.7 | 26.8 | 15 | 59 | 53.5 | 40.5 | 182 | 138.5 | 251 | 2.90 |
| GK26-16 | 16 | 10 | 40 | 17.5 | 70 | 62 | 50.5 | 217 | 170.5 | 303 | 5.80 |
| GK26-20 | 20 | 16 | 64 | 25 | 85 | 76.5 | 62 | 235 | 192.5 | 337.5 | 8.60 |
| GK26-22 | 22 | 19 | 76 | 25.5 | 98 | 80 | 66 | 276.5 | 205 | 391 | 12.10 |
