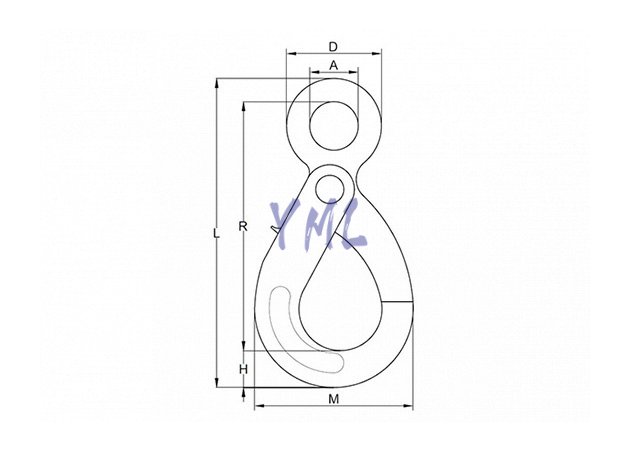

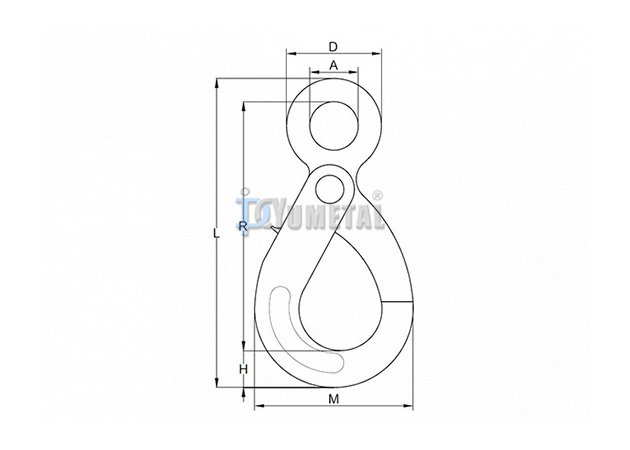

| Art No. | Size | WLL | Breaking Load | Dimensions (mm) | Weight | ||||||
| mm | ton | ton | A | D ±1 | E±1 | H±1 | R±2 | M±2 | L±3 | kg/pc | |
| GK25-06 | 6 | 1.4 | 5.6 | 21 | 43 | 28 | 20 | 110 | 70 | 141 | 0.50 |
| GK25-08 | 8 | 2.5 | 10 | 27 | 51 | 35.5 | 26 | 137 | 90 | 175 | 0.90 |
| GK25-10 | 10 | 4 | 16 | 34.5 | 64.5 | 45 | 30 | 169 | 108 | 212.5 | 1.50 |
| GK25-13 | 13 | 6.7 | 26.8 | 40 | 80 | 53.5 | 40.5 | 209 | 138.5 | 270 | 2.70 |
| GK25-16 | 16 | 10 | 40 | 50 | 104 | 62 | 50.5 | 254 | 170.5 | 331 | 5.70 |
| GK25-20 | 20 | 16 | 64 | 60 | 120 | 76.5 | 62 | 277 | 192.5 | 369 | 7.90 |
| GK25-22 | 22 | 19 | 76 | 70 | 134 | 80 | 66 | 319.5 | 205 | 417 | 11.20 |
