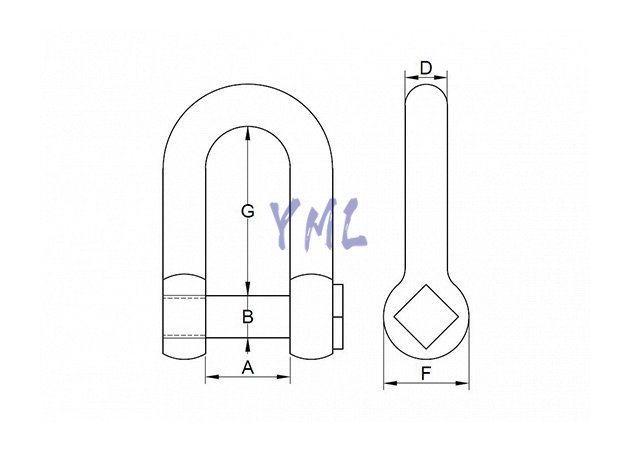

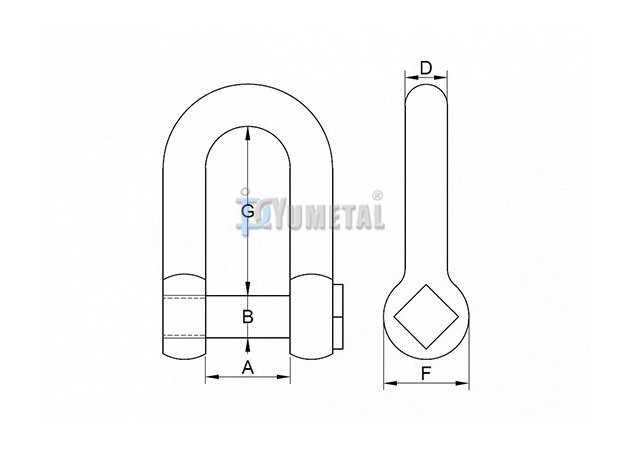

| Art No. | Size | WLL | Dimensions (in.) | Tolerance(+/-) | Weight | |||||
| in. | ton | A | B | G | D | F | C | A | lb/pc | |
| SH17-3/16 | 3/16" | 1/3 | 0.38 | 0.25 | —— | 0.19 | 0.56 | 0.06 | 0.06 | —— |
| SH17-1/4 | 1/4" | 1/2 | 0.47 | 0.31 | 0.91 | 0.25 | 0.61 | 0.06 | 0.06 | 0.11 |
| SH17-5/16 | 5/16" | 3/4 | 0.53 | 0.38 | 1.07 | 0.31 | 0.75 | 0.06 | 0.06 | 0.17 |
| SH17-3/8 | 3/8" | 1 | 0.66 | 0.44 | 1.28 | 0.38 | 0.91 | 0.13 | 0.06 | 0.28 |
| SH17-7/16 | 7/16" | 1-1/2 | 0.75 | 0.5 | 1.48 | 0.44 | 1.06 | 0.13 | 0.06 | 0.43 |
| SH17-1/2 | 1/2" | 2 | 0.81 | 0.64 | 1.66 | 0.5 | 1.19 | 0.13 | 0.06 | 0.59 |
| SH17-5/8 | 5/8" | 3-1/4 | 1.06 | 0.77 | 2.04 | 0.63 | 1.5 | 0.13 | 0.06 | 1.25 |
| SH17-3/4 | 3/4" | 4-3/4 | 1.25 | 0.89 | 2.4 | 0.75 | 1.81 | 0.25 | 0.06 | 2.63 |
| SH17-7/8 | 7/8" | 6-1/2 | 1.44 | 1.02 | 2.86 | 0.88 | 2.09 | 0.25 | 0.06 | 3.16 |
| SH17-1 | 1" | 8-1/2 | 1.69 | 1.15 | 3.24 | 1 | 2.38 | 0.25 | 0.06 | 4.75 |
| SH17-1 1/8 | 1-1/8" | 9-1/2 | 1.81 | 1.25 | 3.61 | 1.13 | 2.69 | 0.25 | 0.06 | 6.75 |
| SH17-1 1/4 | 1-1/4" | 12 | 2.03 | 1.4 | 3.97 | 1.29 | 3 | 0.25 | 0.06 | 9.06 |
| SH17-1 3/8 | 1-3/8" | 13-1/2 | 2.25 | 1.53 | 4.43 | 1.42 | 3.31 | 0.25 | 0.13 | 11.63 |
| SH17-1 1/2 | 1-1/2" | 17 | 2.38 | 1.66 | 4.87 | 1.53 | 3.63 | 0.25 | 0.13 | 15.95 |
| SH17-1 3/4 | 1-3/4" | 25 | 2.88 | 2.04 | 5.82 | 1.84 | 4.19 | 0.25 | 0.13 | 26.75 |
